Product Page

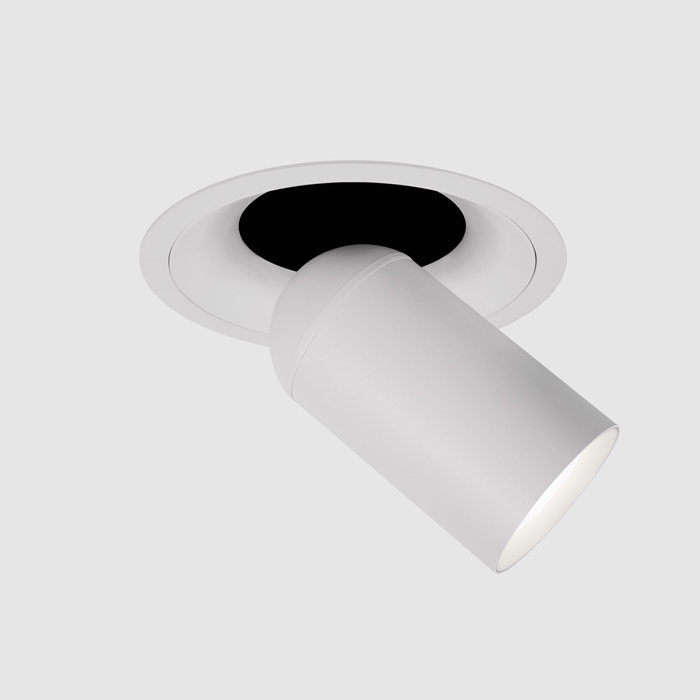

AERA 3" REFLEX CYLINDER
Recessed

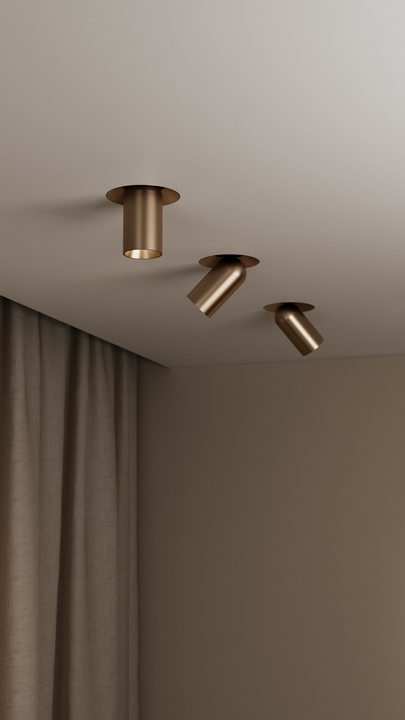

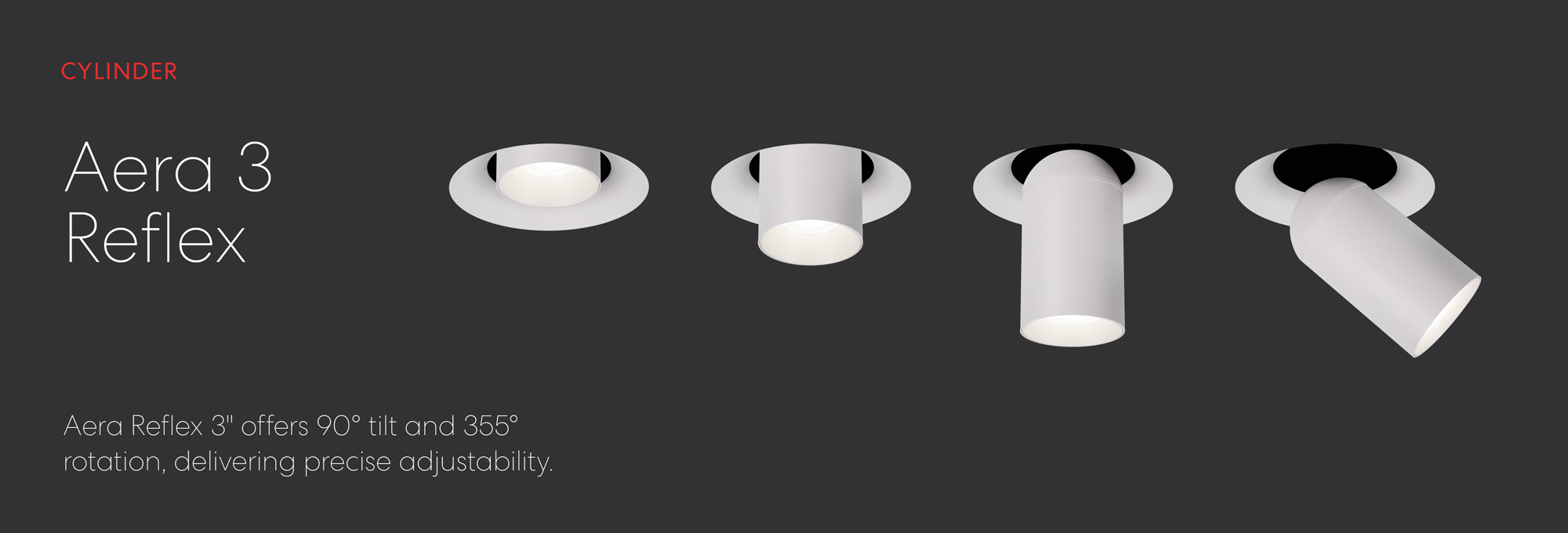

Aera Reflex brings Downlight and Cylinder together in a Single Form. Designed to move between flush, semi-recessed, and extended positions, it supports both ambient and accent lighting within a unified system. Built on the Aera optical platform, Reflex delivers precision optics, high efficacy, and refined architectural detailing. One form. Multiple expressions.
SPECIFICATIONS
SIZE: DIAMETER: 3"
LIGHT SOURCE: LED
CHROMATICITY: STATIC WHITE, SOLA CHROMAWERX, DUO CHROMAWERX
LIGHT DISTRIBUTION: DIRECT
MOUNTING: CYLINDER-CUBOID, RECESSED
OPTICS: XPoint™
OPTICS
Our advanced XPoint™ Refraction Technology uuses micro optical paths that direct the light emitted from the COB (Chip On Board) to intersecting paths that meet in the center and disperse light in a precise direction for each beam angle. XPoint™ technology creates soft well lit environments that have strong visual comfort.
CHROMAWERX
ChromaWerx Sola is single-channel control that dims output while warming the color temperature in a pre-determined relationship. A simple digital or analog control sends a common signal to dual output digital drivers, which are programmed to adjust a specially populated LED array to emulate the effect of dimming a filament source. Dimming range is programmable but the default option runs from 3500K at 100% of full power to 2700K at 5% of full power.
ChromaWerx Duo is two-channel control. It uses analog or digital protocols for synchronous control of both warm and cool LED arrays, enabling the user to set color temperature and light output. Commonly called “tunable white”, ChromaWerx two-channel control provides the range of warm (2700K) to cool (6500K) color that can be useful for helping to entrain circadian rhythms, stimulate alertness for improved educational and work productivity, and compensate for jet lag, among other applications. The ChromaWerx drivers are programmed to limit maximum light output and power usage across all color temperatures.
