Hex Collection Offered in pendant and surface-mounted versions, Hex is available in 15 lighting configurations derived from combinations of up to four luminous cells.
DISTINCTIVE HEXAGONAL PROFILE
3.4″ H x 4″ W
LUMINOUS CONFIGURATIONS
15
CELL WIDTHS
2″ Wide Cells
Products in the Collection
From pendant to wall-mounted options, discover the imminent flexibility of the Hex collection and find the perfect configuration for your next design project.
LUMINOUS CELLS
1-4
UP TO
119 lm/W
UP TO
1200 lm/ft
Hex
Cell ConfigurationsWith Hex, cell configuration determines how light is distributed. Each cell is illuminated by its own array for consistency and brightness, with direct, indirect or all-around output.

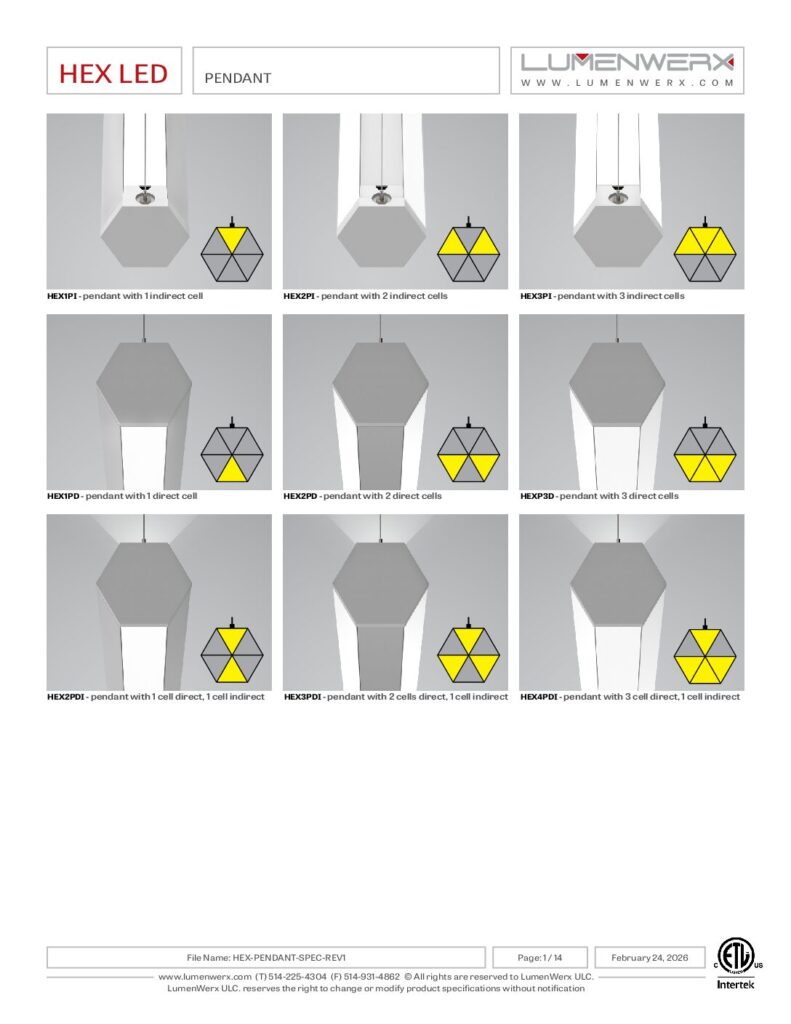

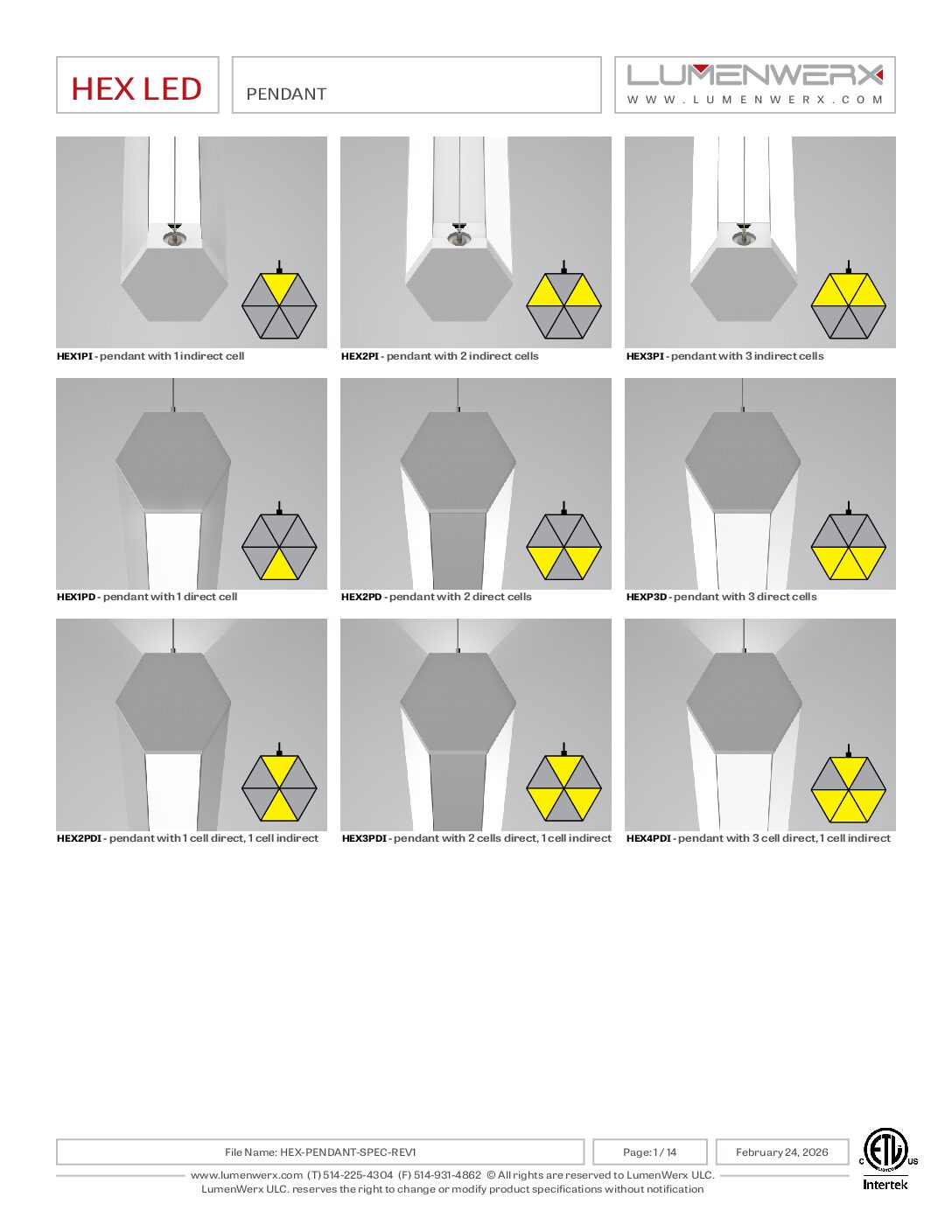

Pendant Configurations
As customizable as they are functional, Hex pendants feature 2” wide cells (luminous or opaque) that snap into the armature for a seamless transition from cell to cell and access to LED arrays and driver. Available in 2′ to 8′ sections with cast endcaps for crisp detailing and suspension support, Hex can be installed as a single luminaire or continuous run.

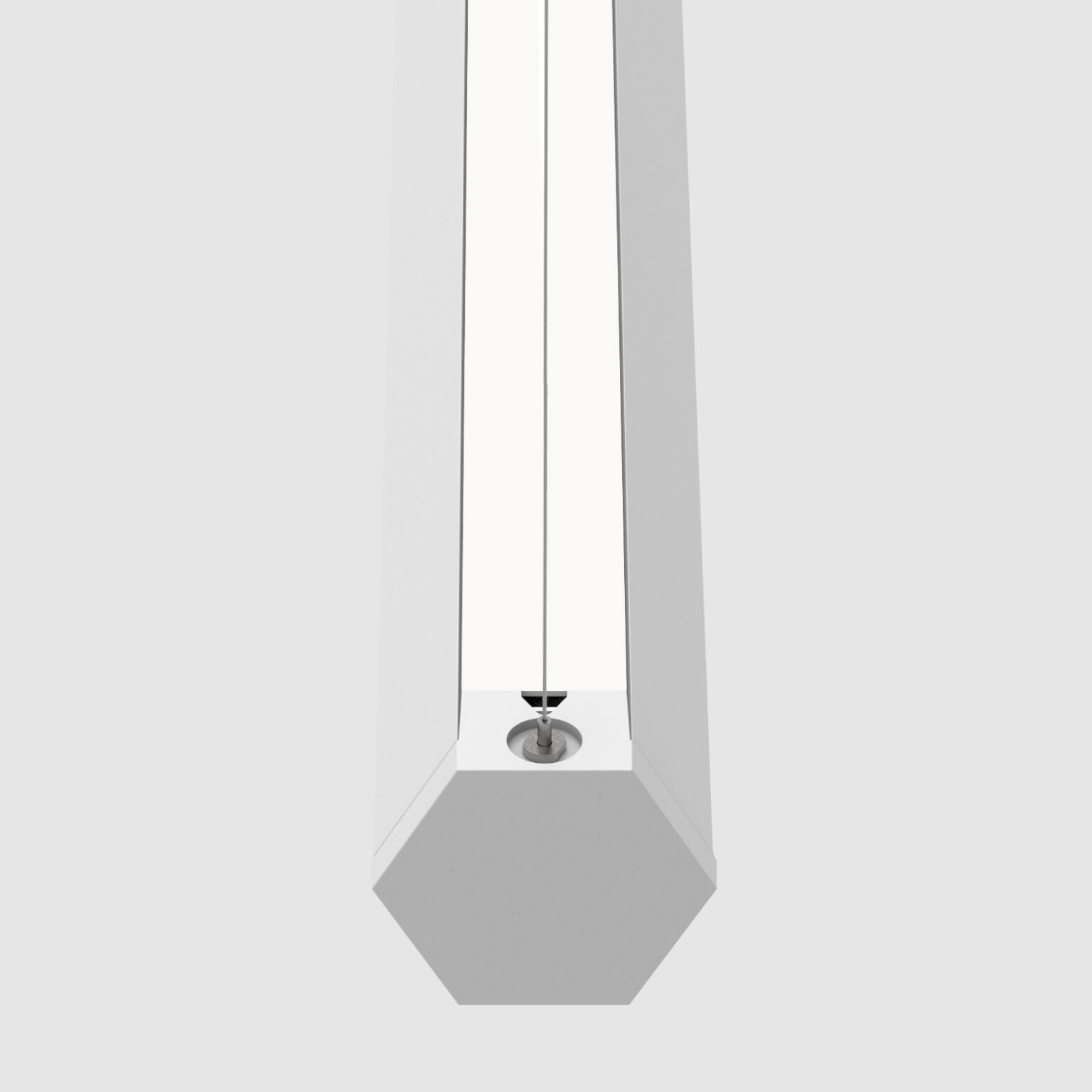

HEX1PI
Pendant with 1 indirect cell

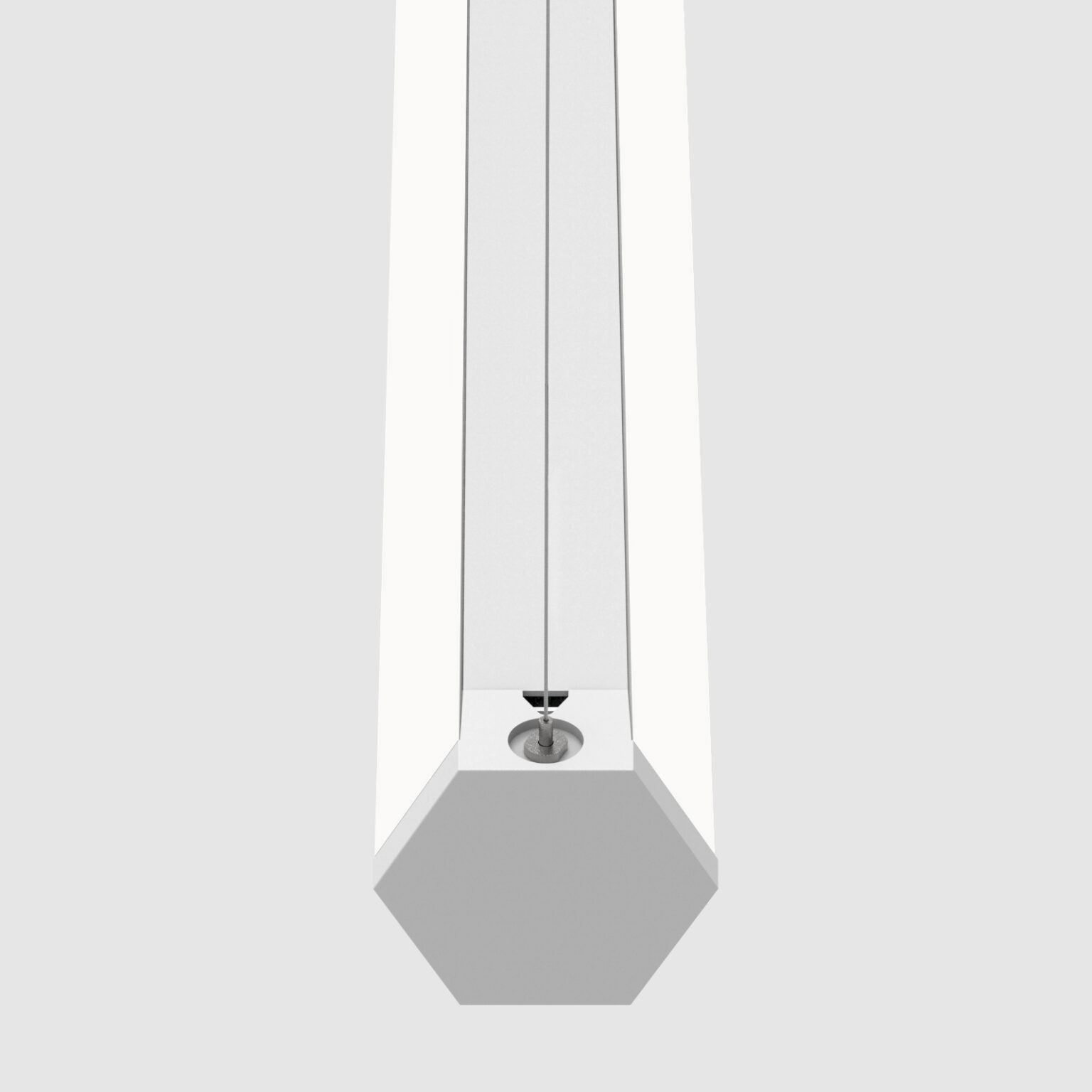

HEX2PI
Pendant with 2 indirect cells

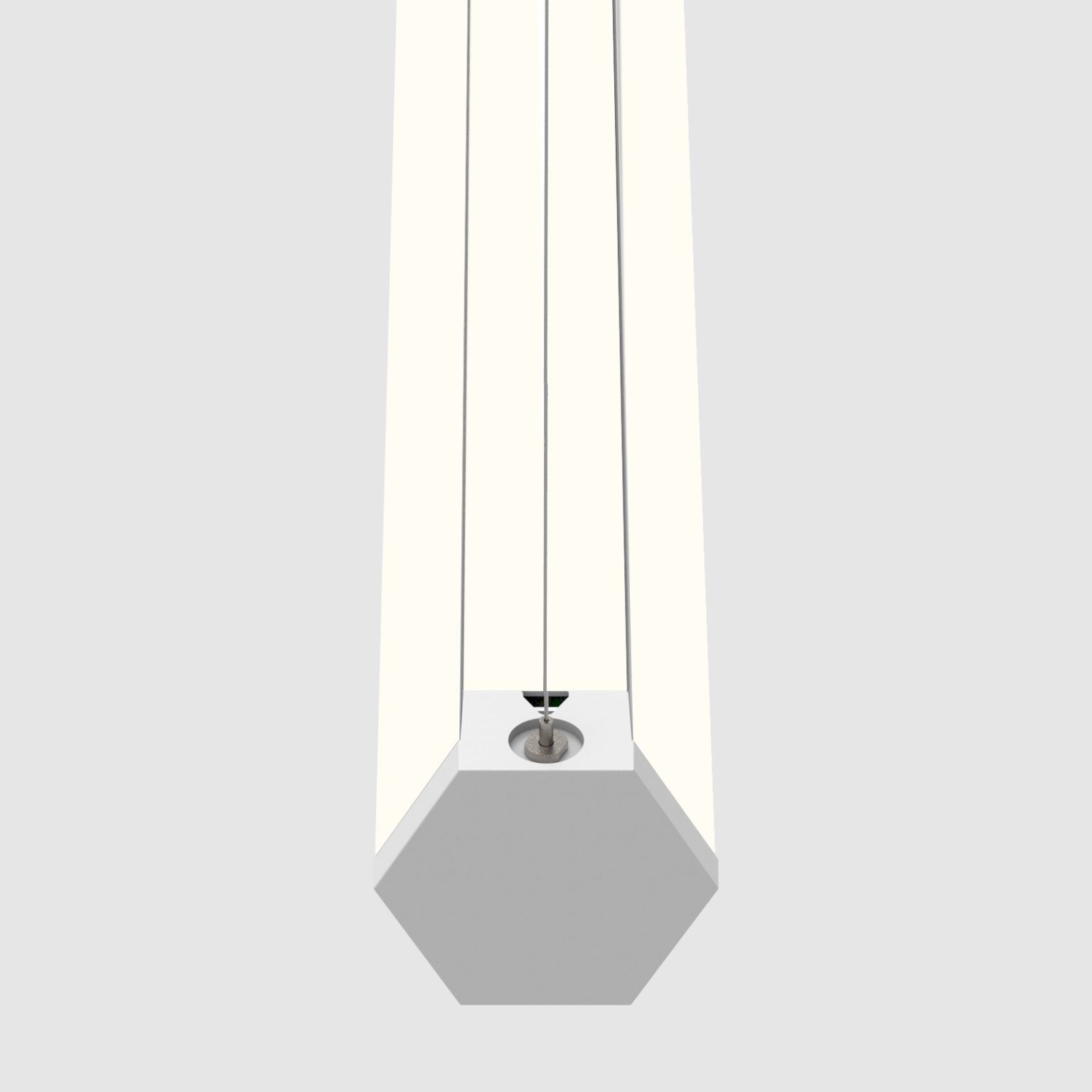

HEX3PI
Pendant with 3 indirect cells

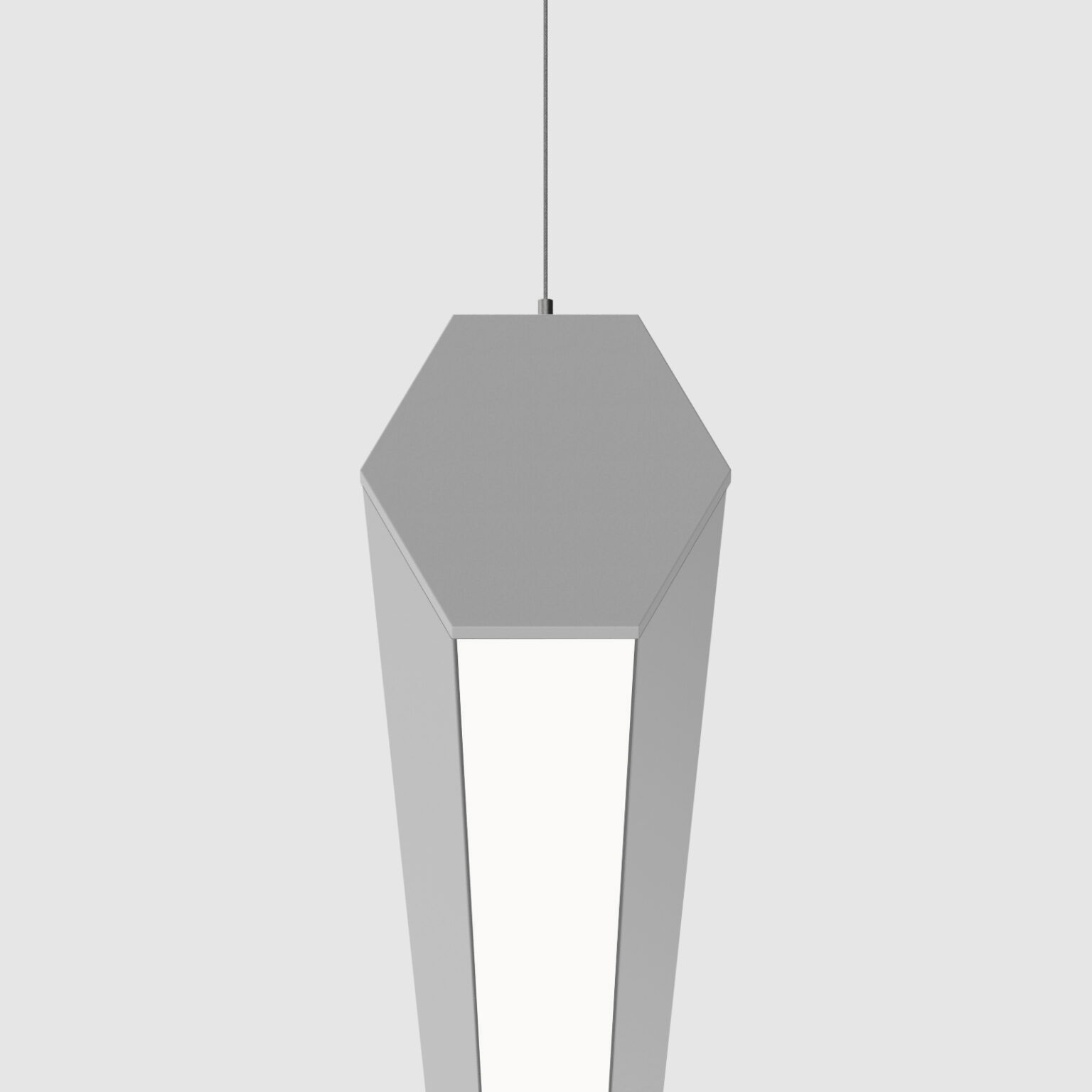

HEX1PD
Pendant with 1 direct cell

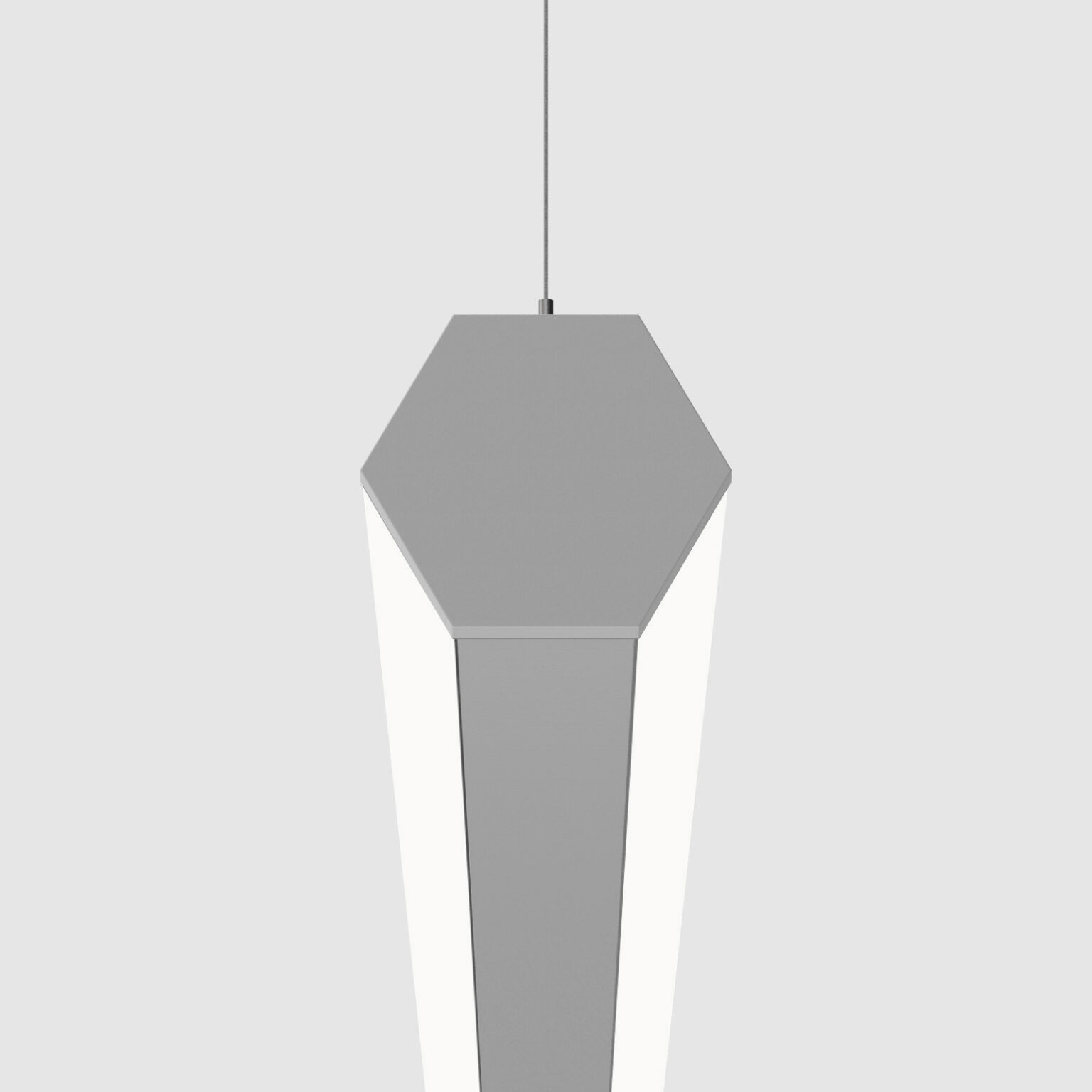

HEX2PD
Pendant with 2 direct cells

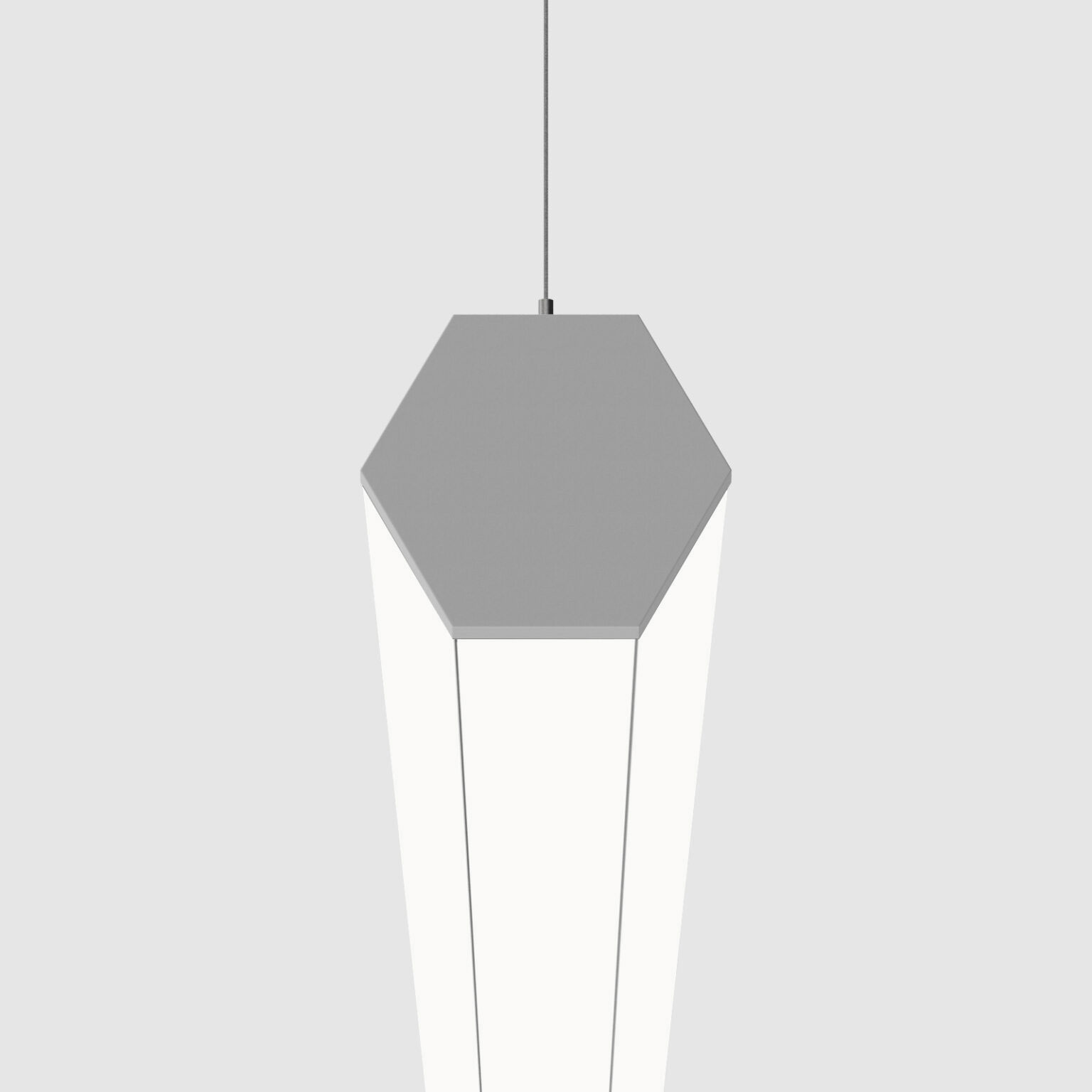

HEX3PD
Pendant with 3 direct cells

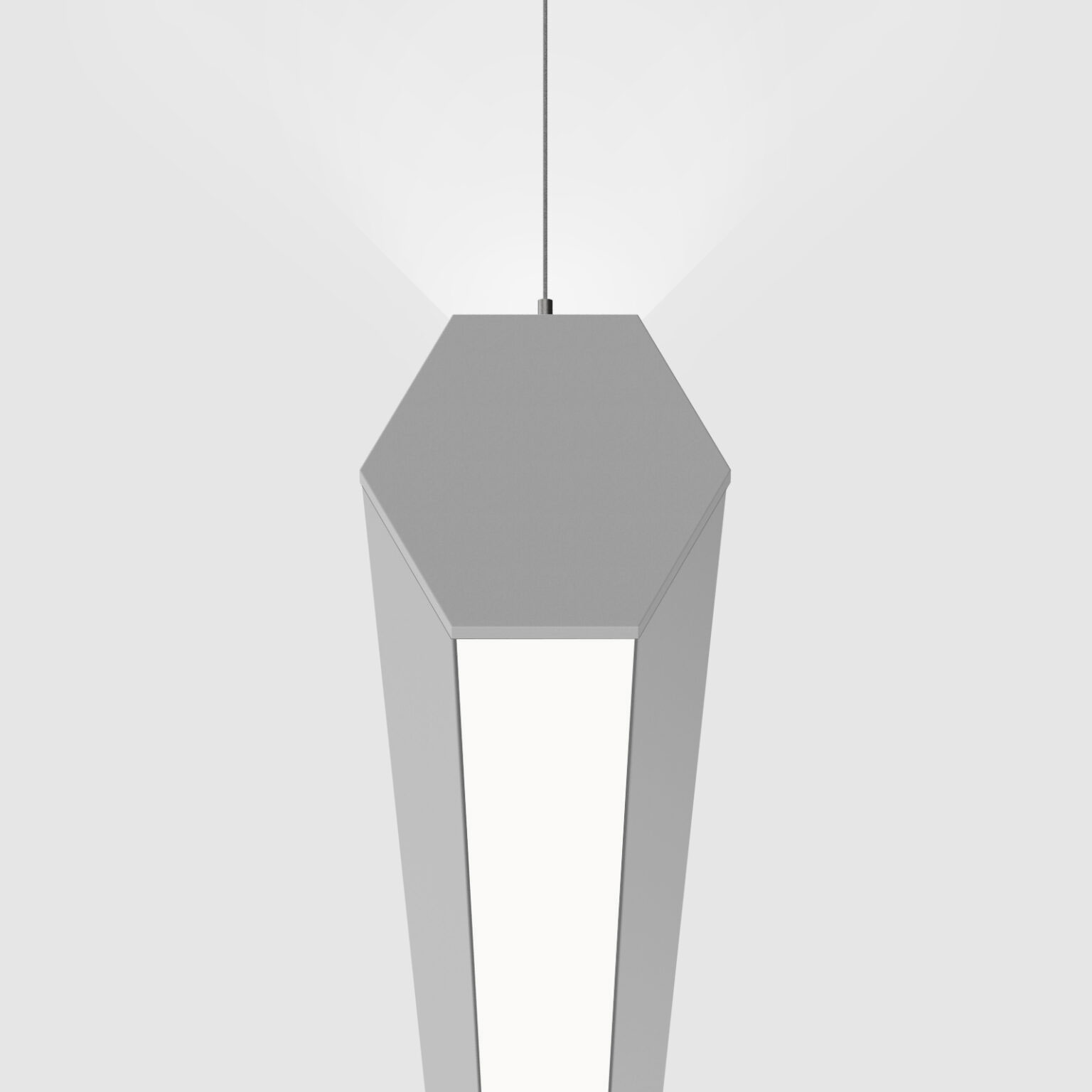

HEX2PDI
Pendant with 1 cell direct, 1 cell indirect

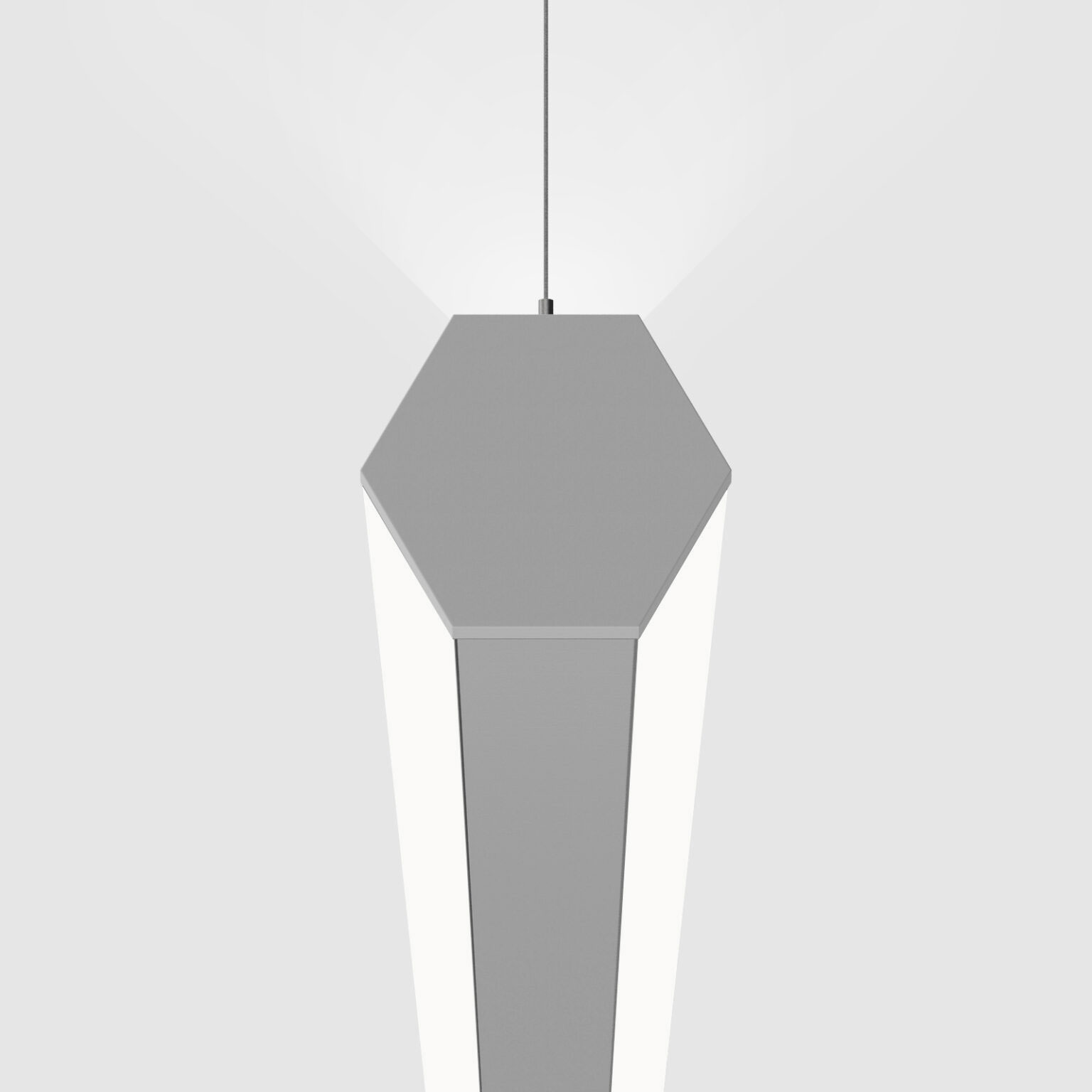

HEX3PDI
Pendant with 2 cells direct, 1 cell indirect

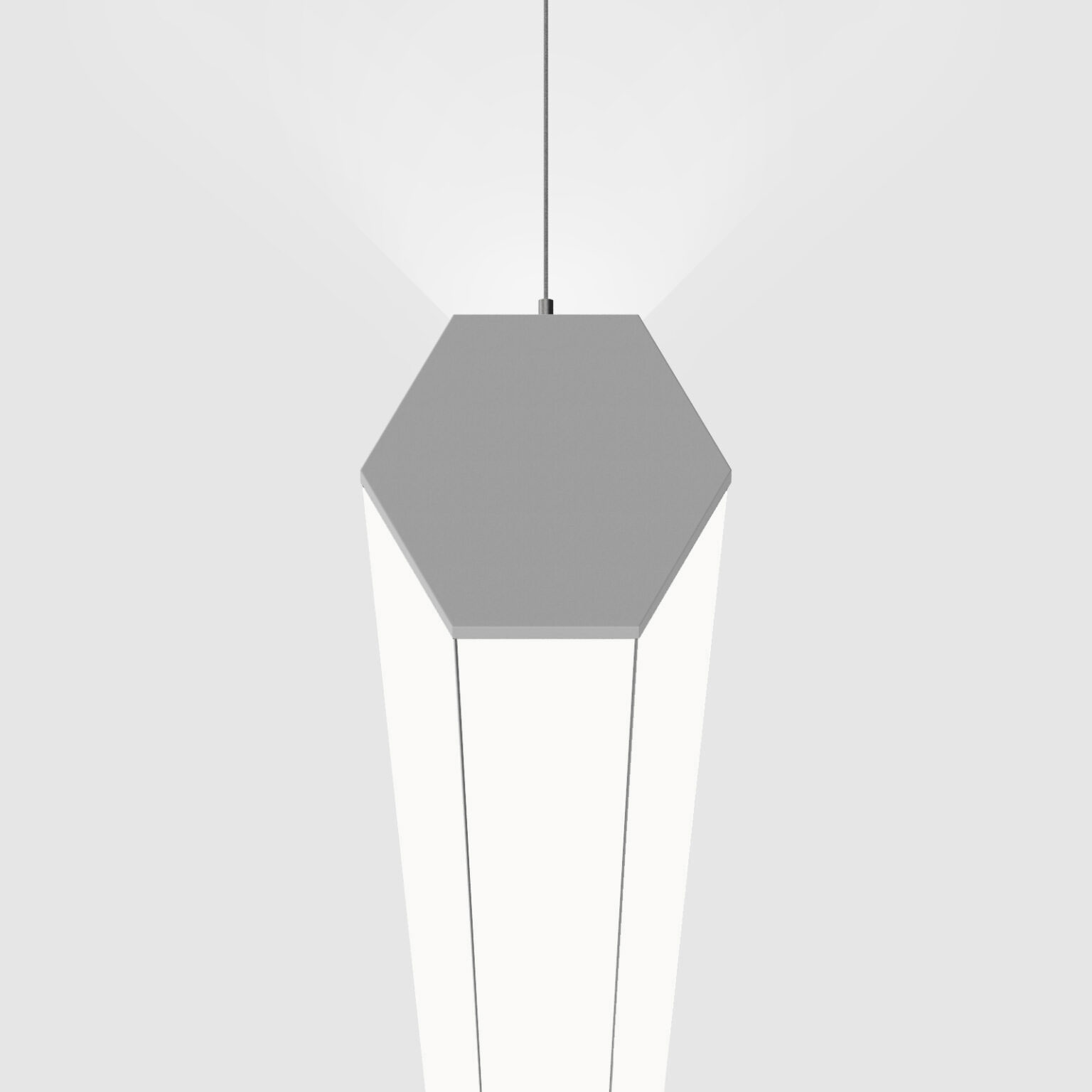

HEX4PDI

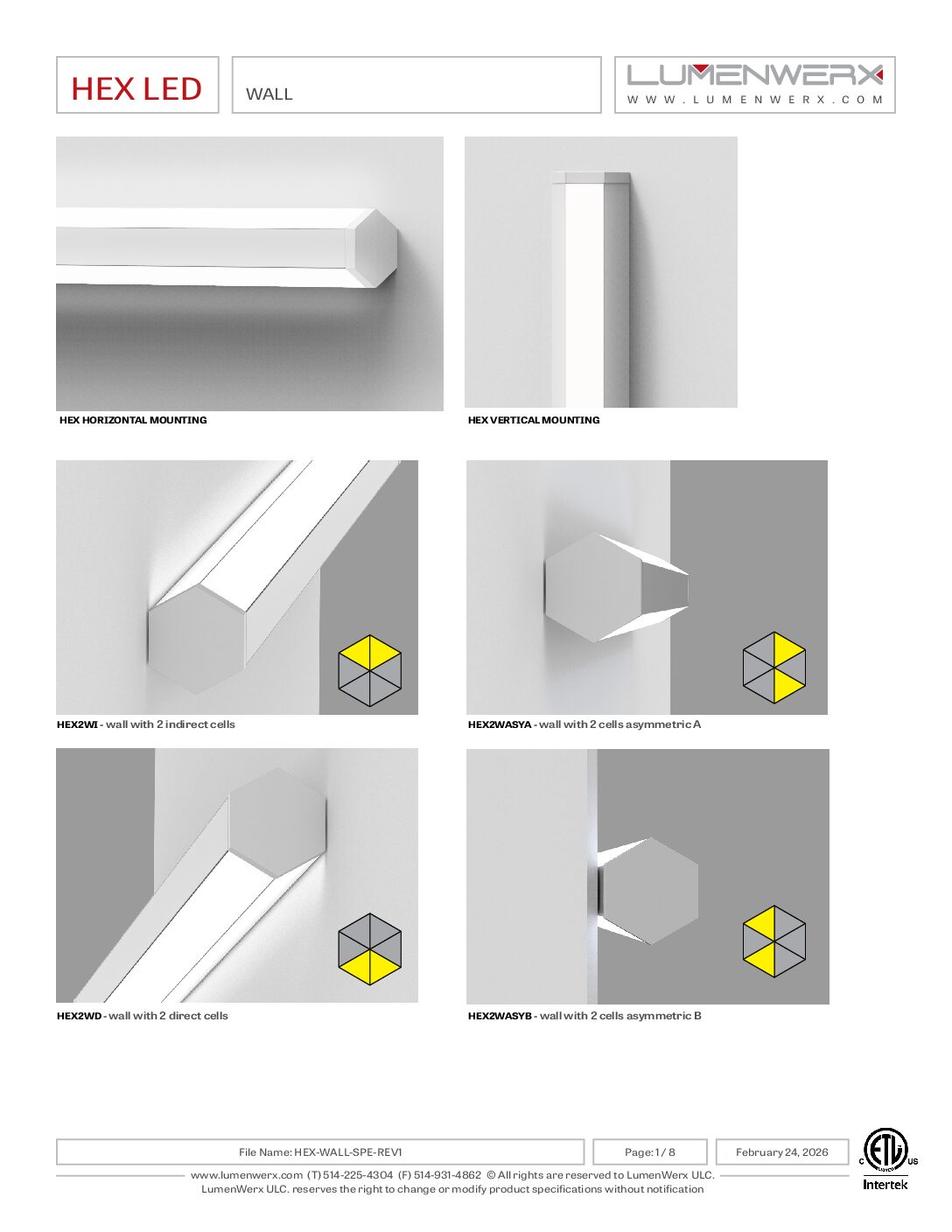

Pendant with 3 cell direct, 1 cell indirectWall Configurations

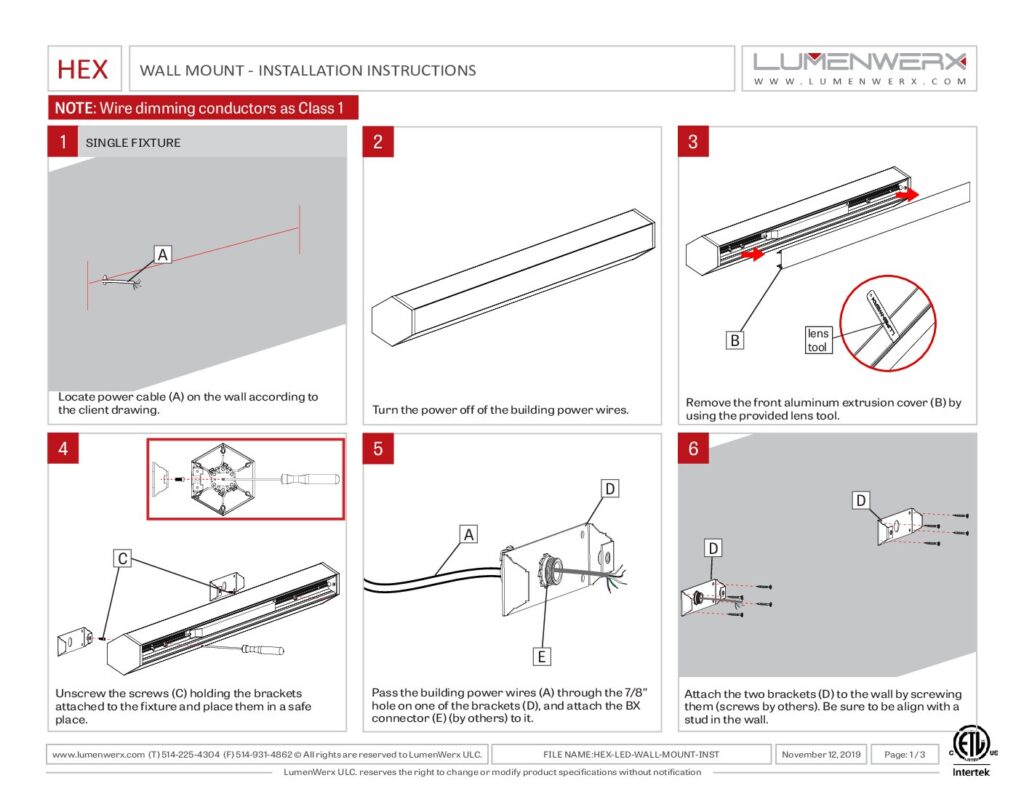

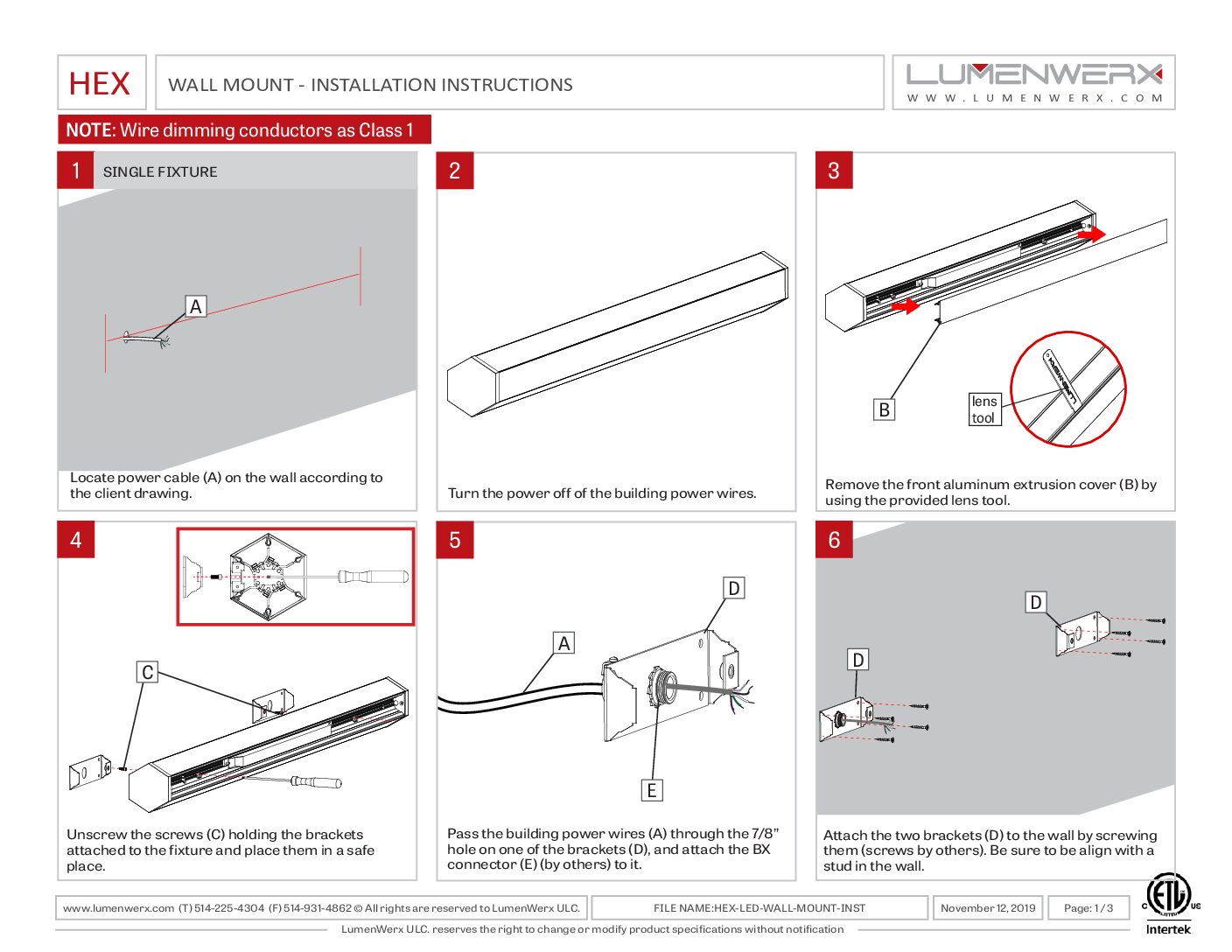

Hex wall fixtures can be mounted vertically or horizontally in any of four ADA-compliant cell configurations. All serviceable components can be accessed through the luminaire.

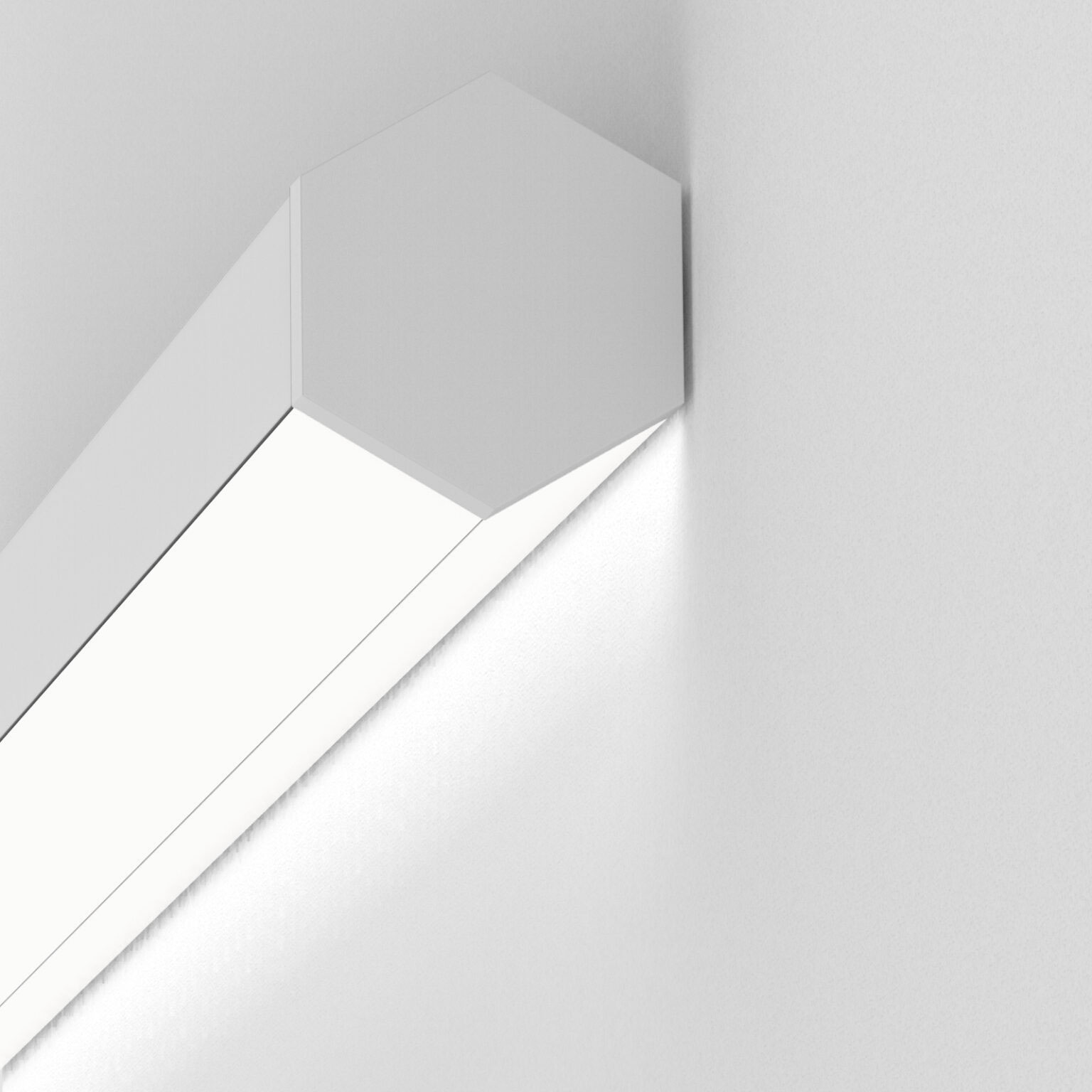

HEX2WI
Wall Indirect with 2 Cells

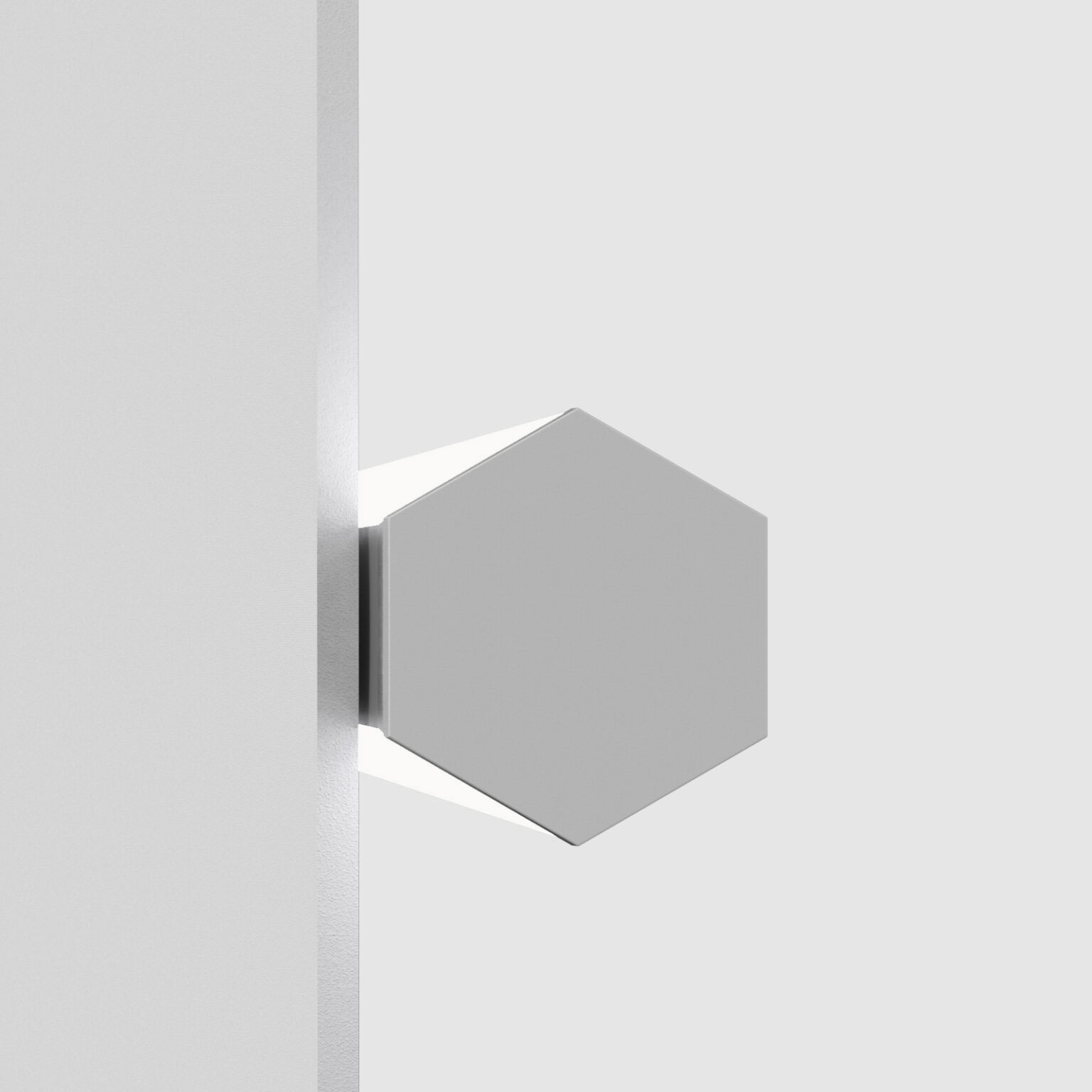

HEX2WD
Wall Direct with 2 Cells

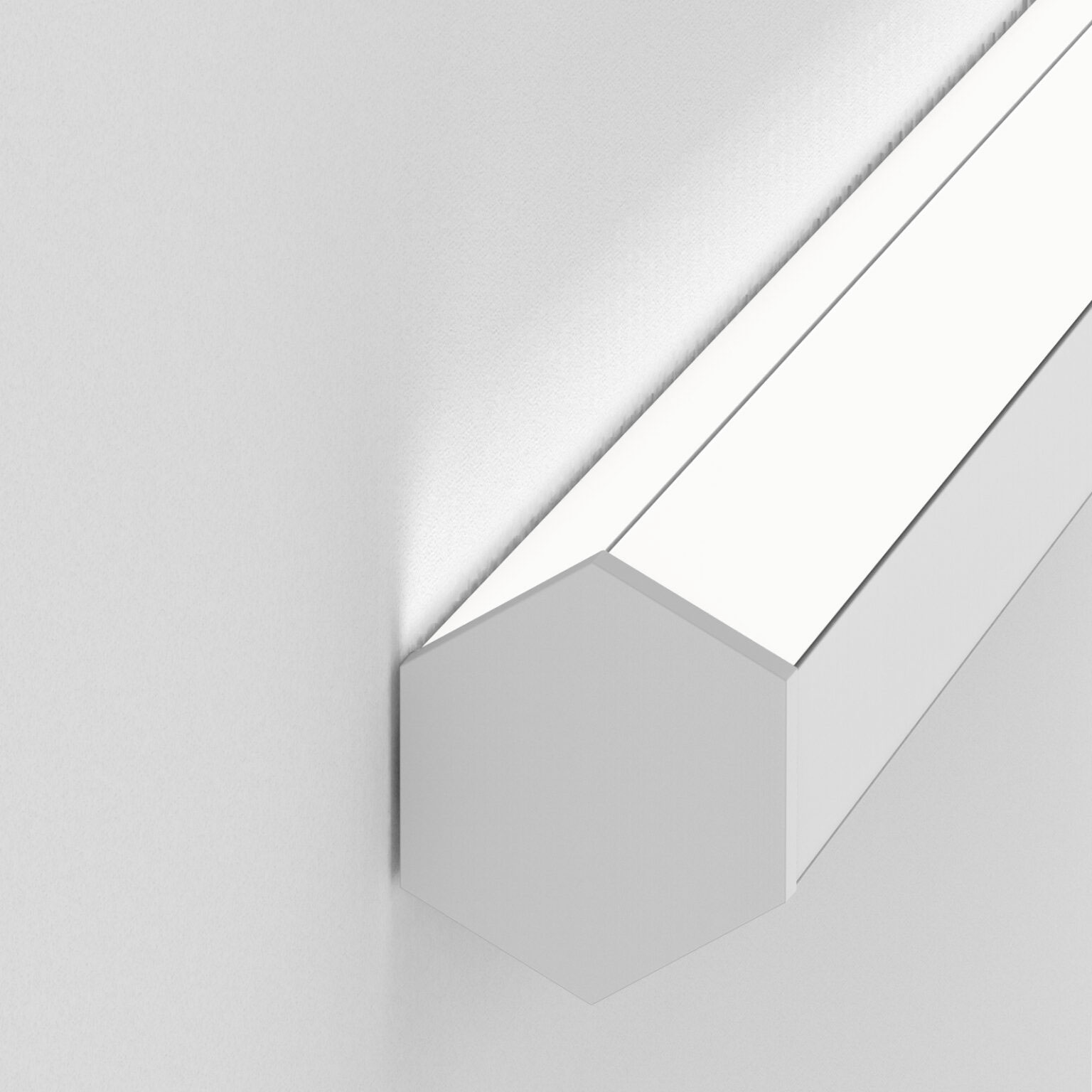

HEX2WASYA
Wall with 2 Cells Asymmetric A

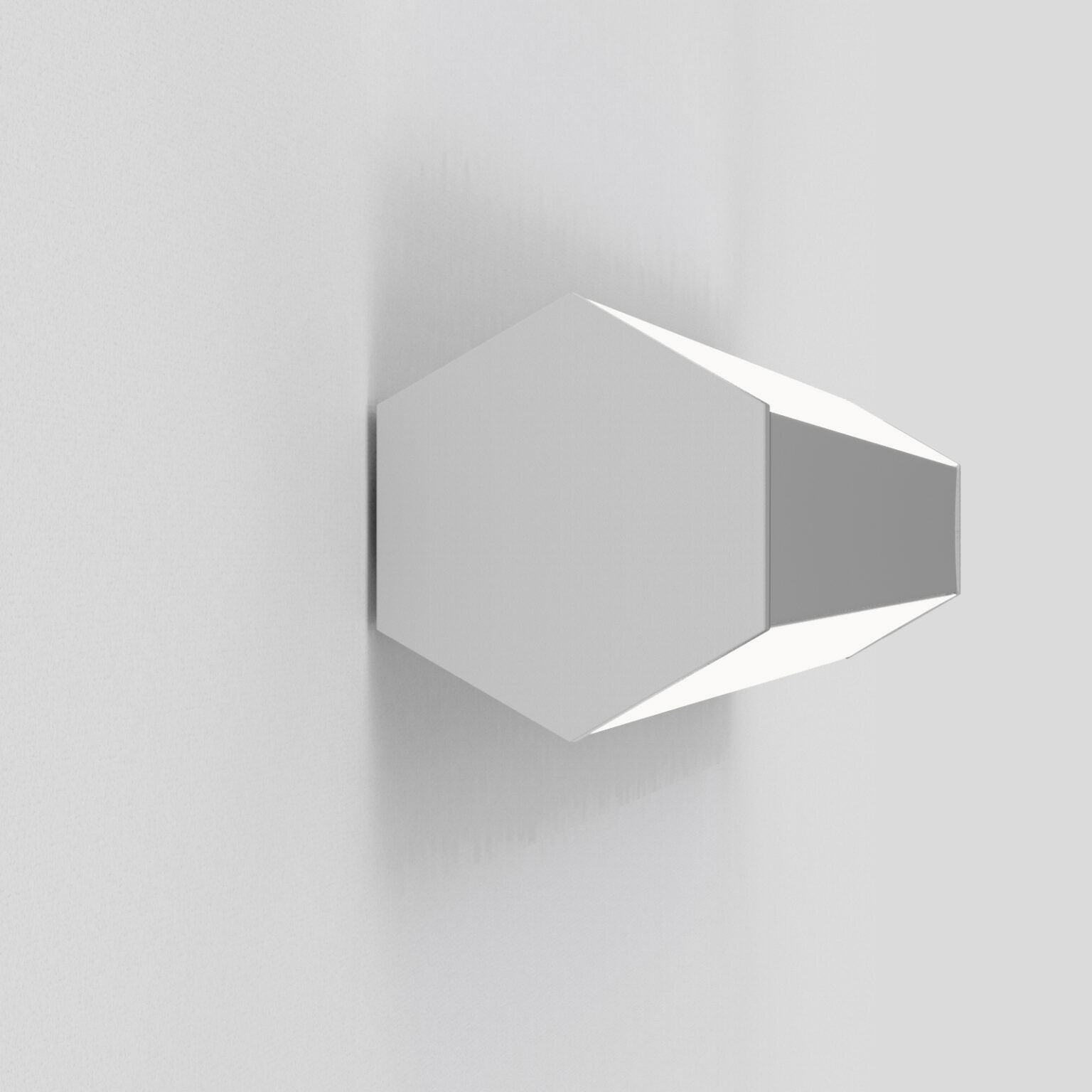

HEX2WASYB
Wall with 2 Cells Asymmetric B
