Pendant Indirect Regressed Widespread

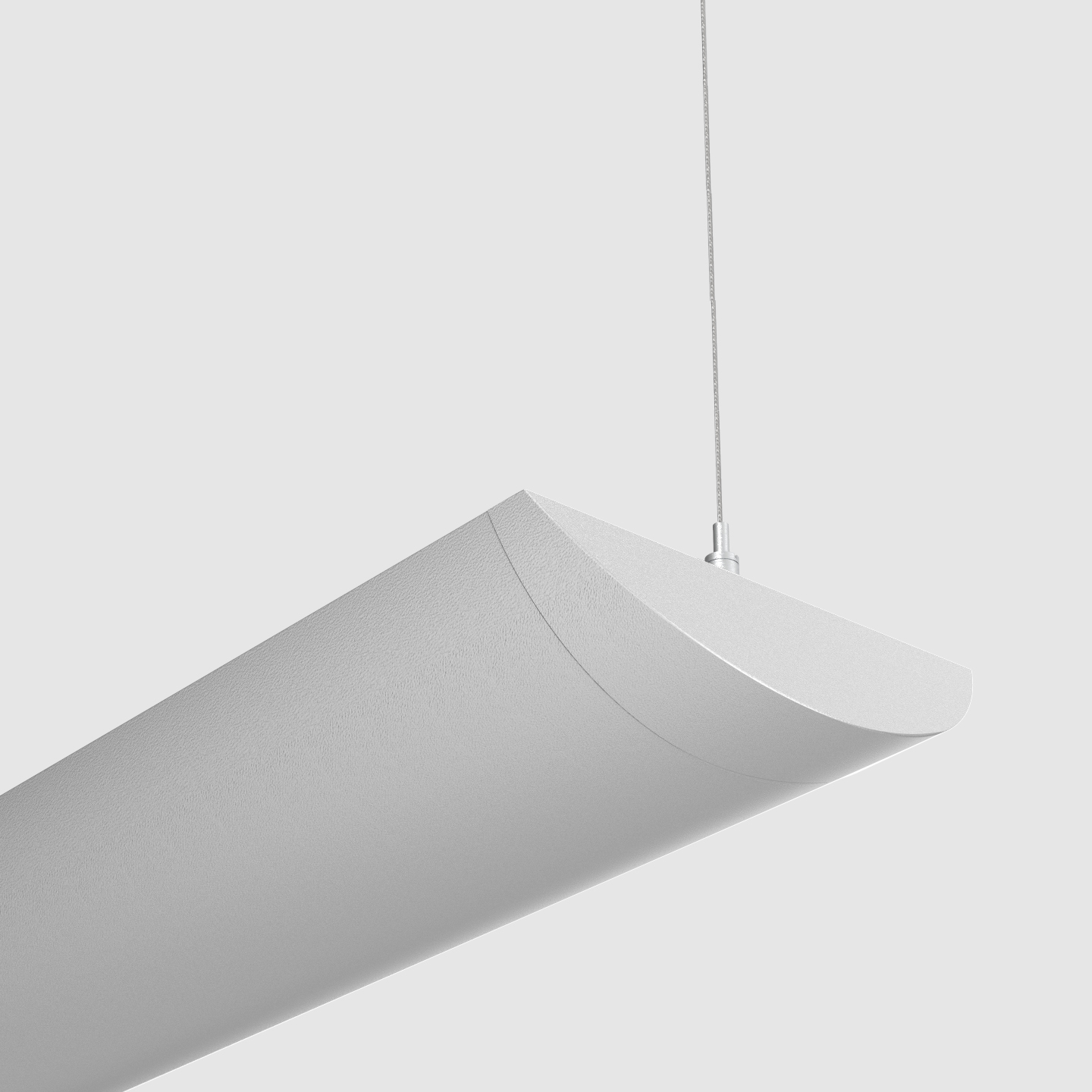

Pendant Indirect Sloped Widespread

Pendant Indirect Regressed Widespread
Pendant Indirect Sloped Widespread

Paz

Indirect Widespread Optics

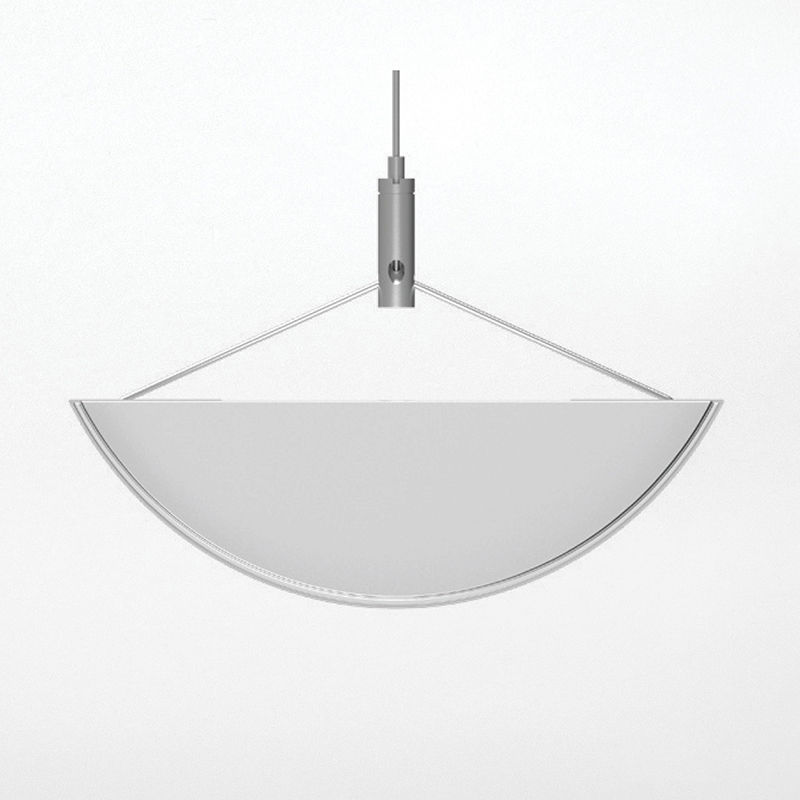

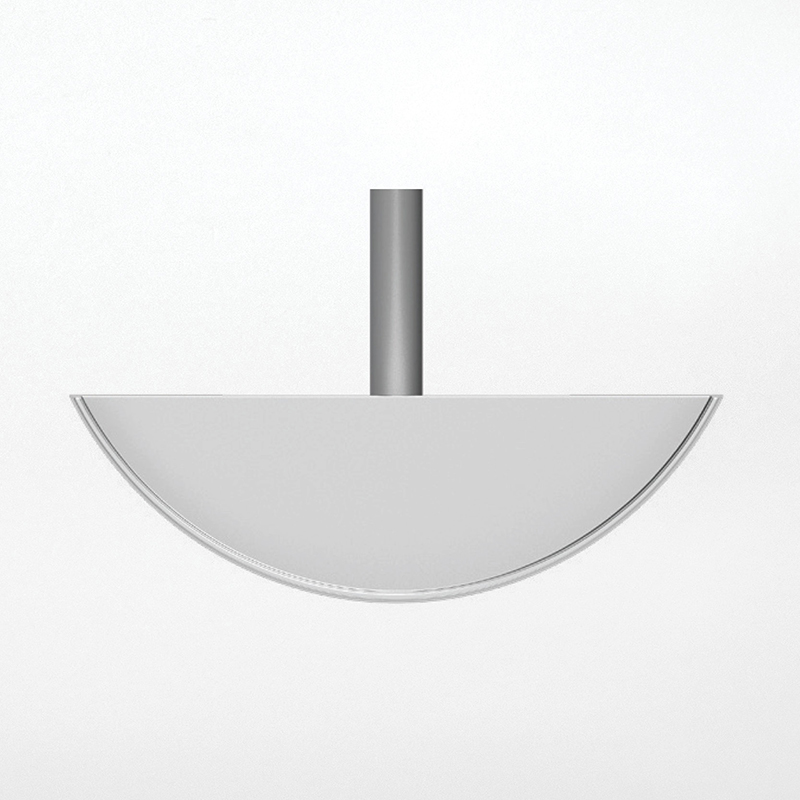

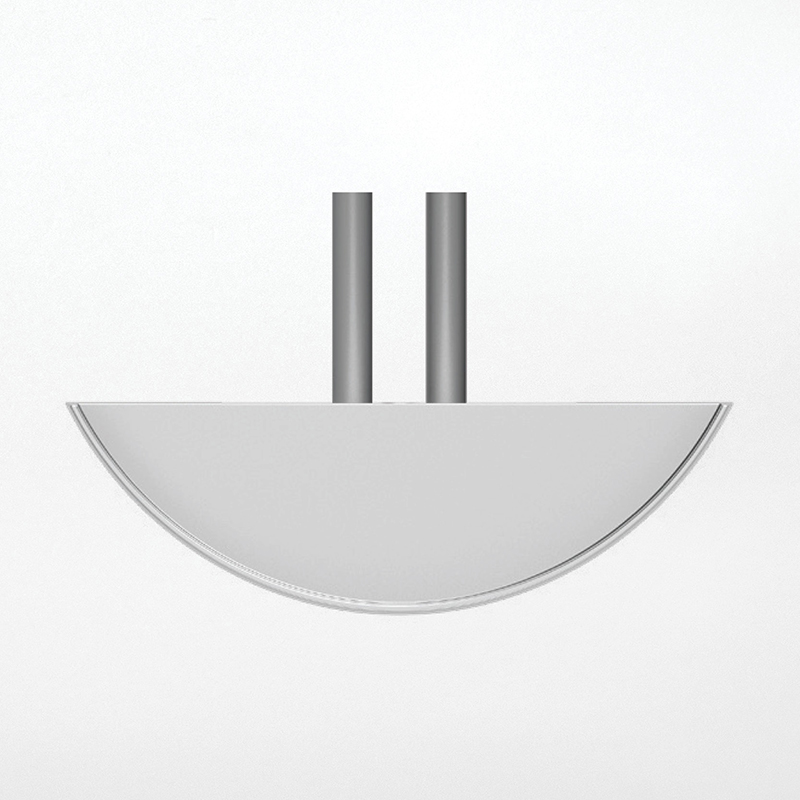

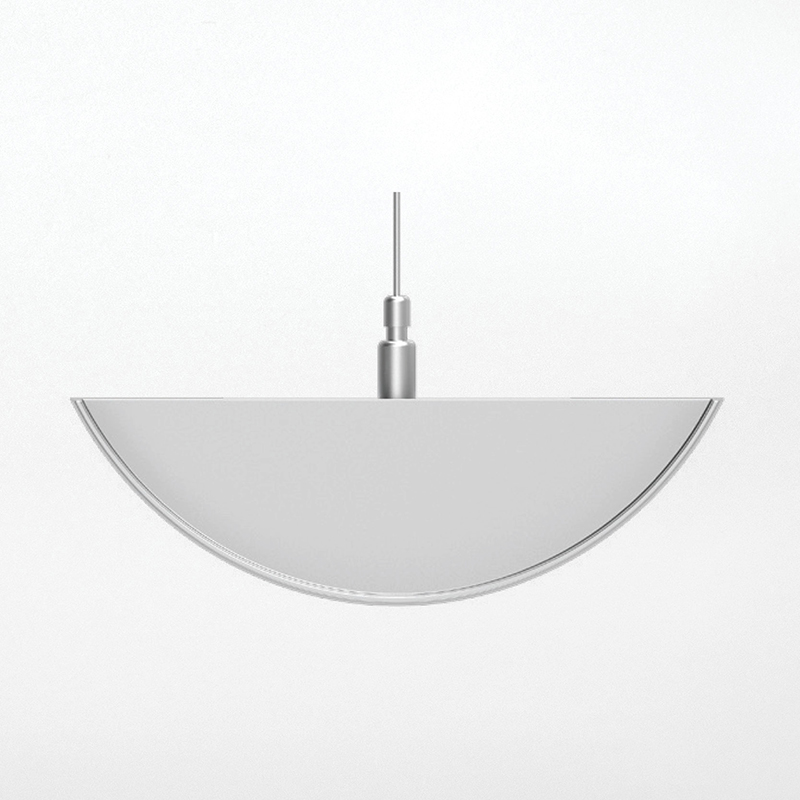

Constructed of extruded die-cast aluminum, Paz measures just over 6″ across – the smallest curved profile available today. A choice of end cap treatments and suspension options, as well as continuous runs in 2′ increments, provides design flexibility. Paz incorporates our high-performance, widespread indirect optics, and delivers comfortable indirect lighting with up to 109 lm/W. Optional Chromawerx technologies include dim to warm (Sola) and tunable white (Duo).

Specifications - Pendant Indirect Regressed Widespread

Product TypeLinear SizeW 6 5⁄32" OpticWIO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

WIO

Widespread Indirect Optic (WIO) uses two vertically oriented LED arrays that couple light into the edges of a linear light guide. A specially designed TIR/microstructure extracts light into the desired “batwing” distribution. Peak intensity occurs at 120° while suppressing direct uplight. The peak-to-zenith intensity ratio is 2:1, outstanding for a narrow luminaire. The Widespread Indirect Optic produces noticeably smoother ceiling brightness than a typical Lambertian uplight distribution, permitting generally wider spacing as well.

Paz
