Pendant
Wall

Pendant
Wall

Smile

Direct/Indirect

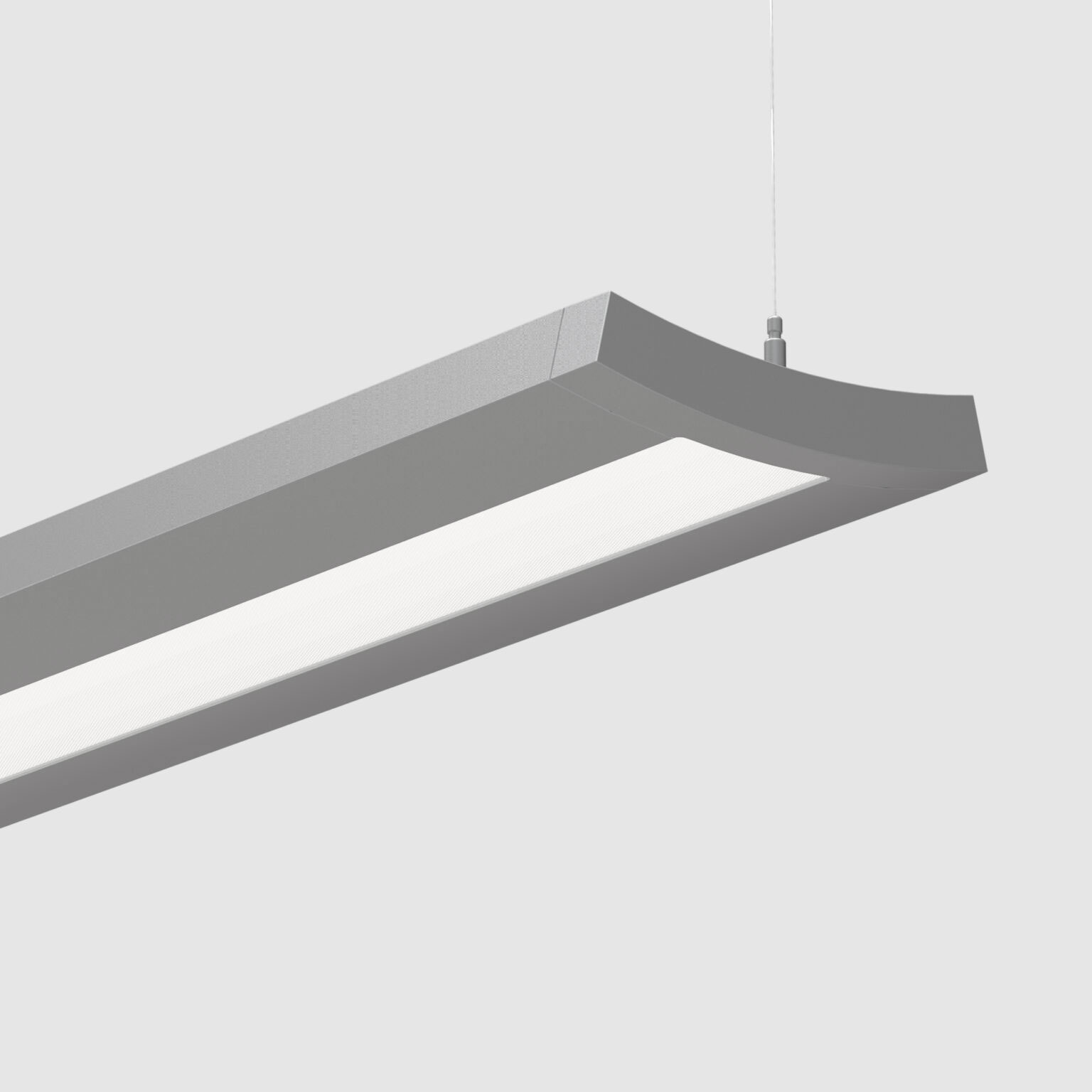

Smile is a linear luminaire with a gently curved profile and a charming aspect, available as a pendant or wall-mount fixture. Using advanced LED engines and optical control, Smile provides widespread uplighting and well-controlled downlighting, delivering both efficient and comfortable illumination. Smile is offered in a choice of light distributions, outputs, and color temperatures, together with comprehensive electrical and control options.

Specifications - Pendant

Product TypeLinear SizeW 8" OpticPMO MountingPendant Distribution TypeDirect/Indirect

Optics

PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Performance

Per 4 ft – 15% Down, 85% Up Distribution

LED Output	Color Temp	Watts Nominal	Lumens	Efficacy (LPW)
Low output	4000K	27.5	3000	110
Medium output	4000K	32	3500	109
High output	4000K	37	4000	108

Smile

Direct/Indirect

Specifications - Wall

Product TypeLinear SizeW 8" OpticPMO MountingWall Distribution TypeDirect/Indirect

Optics

PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.
