Evoq

Adaptable Cove System

Evoq is a modular cove lighting system offering a variety of mounting options and optics—Asymmetric Narrow Optic (ANO), Asymmetric Wide Optic (AWO), Symmetric Narrow Optic (SNO), and Symmetric Wide Optic (SWO). Fixtures are available in 12″, 18″, and 48″ lengths and deliver powerful illumination up to 1200 lm/ft, ranging from 3W to 12W, with ramps that follow the cove form to conceal all wiring. Available in mud-in, direct-mount, and field-curvable options, Evoq is quick to install and can be field-cut to fit coves of any size.

Specifications - Cove

Product TypesLinear, Cove SizeW 3" OpticsANO, AWO, SNO, SWO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo), RGBW (Quadro), Full-Spectrum CertificationDeclare MountingCove LumenXpressYes Distribution TypeAsymmetric

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

RGBW (Quadro)

Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.

Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics

ANO

Our Asymmetric Narrow Optic (ANO) is designed specifically for shallow coves with optimal performance achieved with fixture placement at 6”–12” from the ceiling. Its precise projection of light along ceilings and walls is evenly distributed with a soft, homogeneous gradient effect. The ANO peak intensity angle from nadir is at 110°, making it a true asymmetric optic that directs the light where it is intended.

AWO

The Asymmetric Wide Optic (AWO) excels at maximizing light projection even farther to create a soft gradient illumination with remarkable uniformity in deeper coves. The AWO’s optimal performance is achieved with fixture placement at 10”-36” from the ceiling. Its peak intensity angle from nadir is at 107°, creating a true asymmetric optic that aims light exactly where needed.

SNO

The Symmetric Narrow Optic (SNO) delivers a focused, evenly balanced beam that defines form and highlights architectural elements with clarity. Ideal for emphasizing linear paths, structural features, or areas needing concentrated illumination, it provides controlled, precise lighting that sharpens visual intent without distraction.

SWO

The Symmetric Wide Optic (SWO) offers broad, generous illumination that supports general ambient lighting while maintaining a refined architectural presence. Its uniform, evenly diffused output is well-suited for open areas, circulation zones, and spaces where comfortable, consistent coverage is desired without visual noise.

Plug & Play
Design

Soft & Uniform
Illumination

Field-Curvable
Mounting

Evoq System

1. Specify your fixture

– Select your options (Optic, CCT, CRI, lumen package, etc.)

2. Define your Configuration

– Linear cove
– Curved patterns
– Straight patterns

3. Select your Mounting

– 12+ ramp profiles
– Field-curvable ramps
– Option to use existing cove (by others)

Adaptable Cove System

Evoq: Introduction

1.

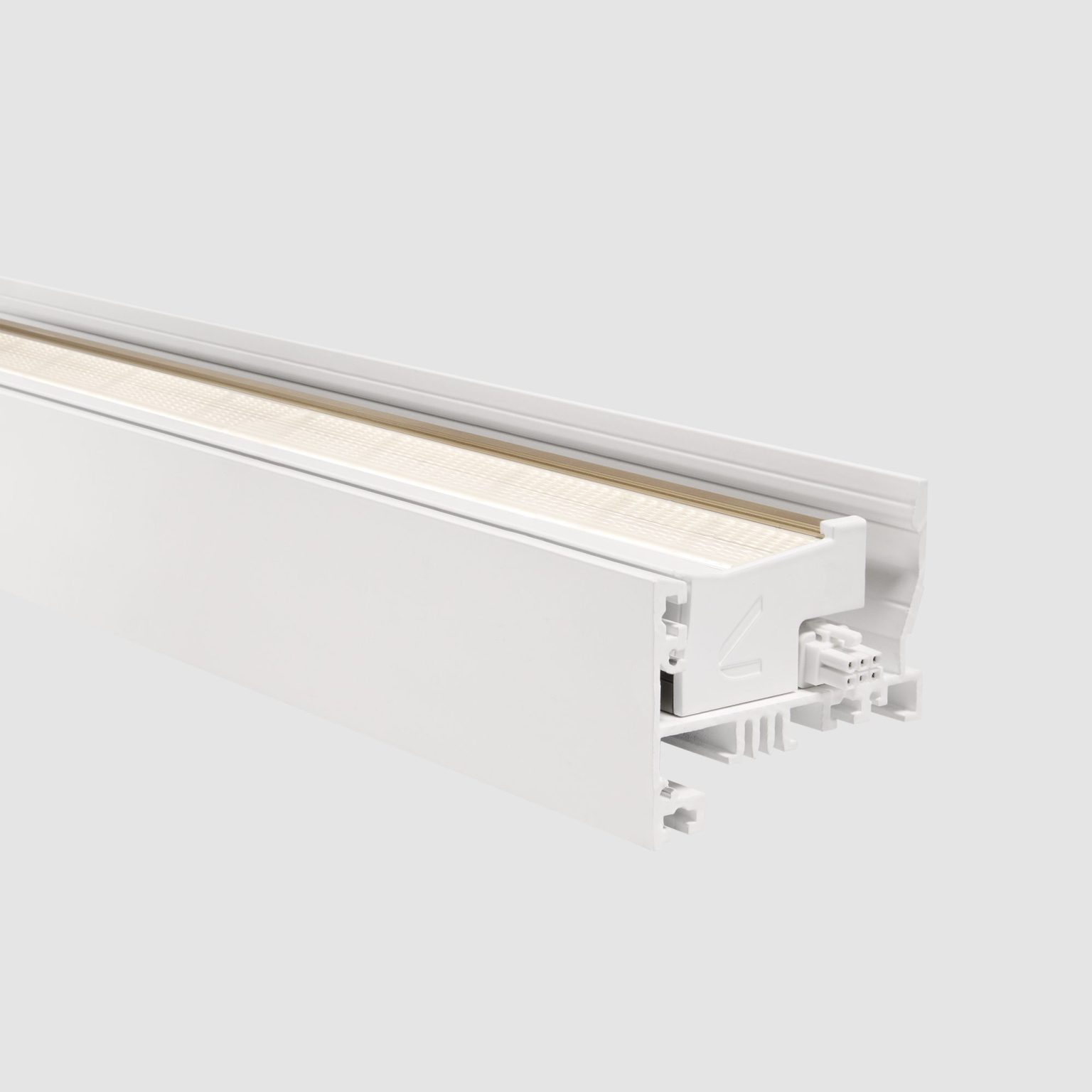

Evoq The Fixture

Evoq fixtures are powerful, delivering up to 1200 lm/ft with outputs ranging from 3W to 12W. Integrated drivers maximize performance while preserving a clean, minimal form. Four optic options—the Asymmetric Narrow Optic (ANO), Asymmetric Wide Optic (AWO), Symmetric Narrow Optic (SNO), and Symmetric Wide Optic (SWO)—provide precise control for a wide range of cove lighting applications.

Evoq supports multiple mounting approaches, including Mud-In, Direct Mount, and field-curvable ramp profiles, ensuring compatibility with virtually any architectural cove design. Fixtures can also be installed in existing coves as standalone luminaires or mounted using adjustable brackets and rails.

Plug & Play Design

Plug and play makes it easy. Compact and versatile, Evoq 12″, 18″, and 48″ fixtures install seamlessly into deep or shallow coves with minimal effort. Offered with four optic choices for symmetric and asymmetric distribution, Evoq provides gentle, uniform illumination that can be spaced up to 0.5″, eliminating socket shadows and dark spots on ceilings and walls.

Quick Connection

200 ft Max Run Length

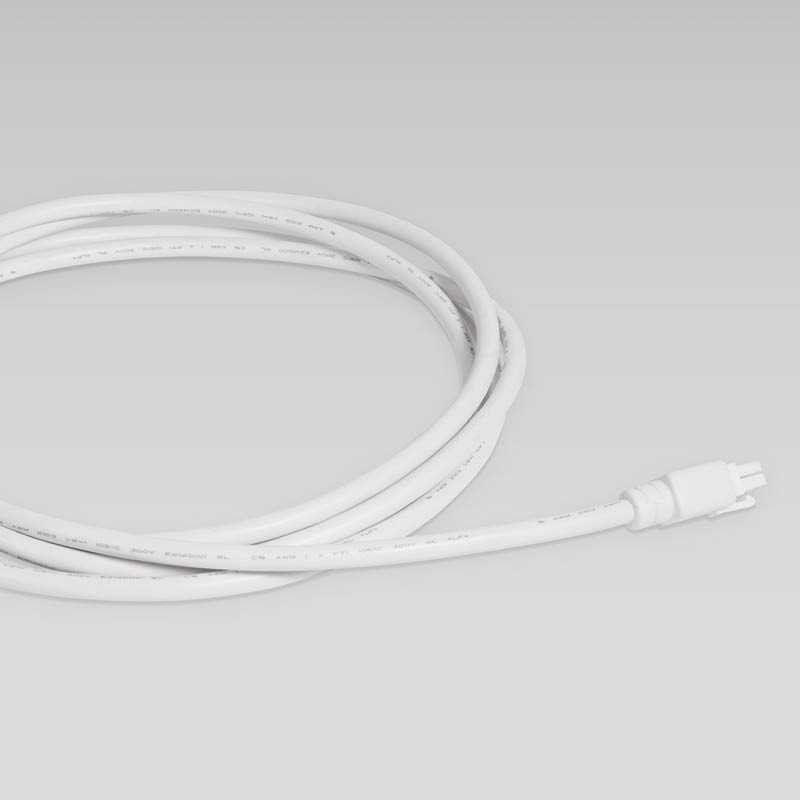

Retractable Cable for Easy Installation

Recommended Fixture Spacing Up to 0.5"

Flexible Connection for Curved Coves

Jumper Cable for Sharp-Angled Cove Design

Adjustable Option with Brackets and Mounting Rail

2.

Evoq Configurations

Designed for linear runs or straight and curved patterns, the Evoq Cove system offers the flexibility to light coves in any configuration. Choose curved configurations for shaping curved shapes with integrated corners, or straight configurations for simple geometric shapes and complex patterns, also with integrated corners.

Curved Cove Configurations

Bring flowing visions to life with precision and ease. Curved cove configurations offer the flexibility to create curved shapes, patterns and integrated corners, with a minimal 15″ radius. Three mounting options available: two preset curved ramp options, and one field-curvable ramp option.

Straight Cove Configurations

From long linear runs to cut-in angles, Straight cove configurations enable seamless pattern integration and effortless corner illumination. Choose from over eight factory preset mounting options.

3.

Evoq Mountings

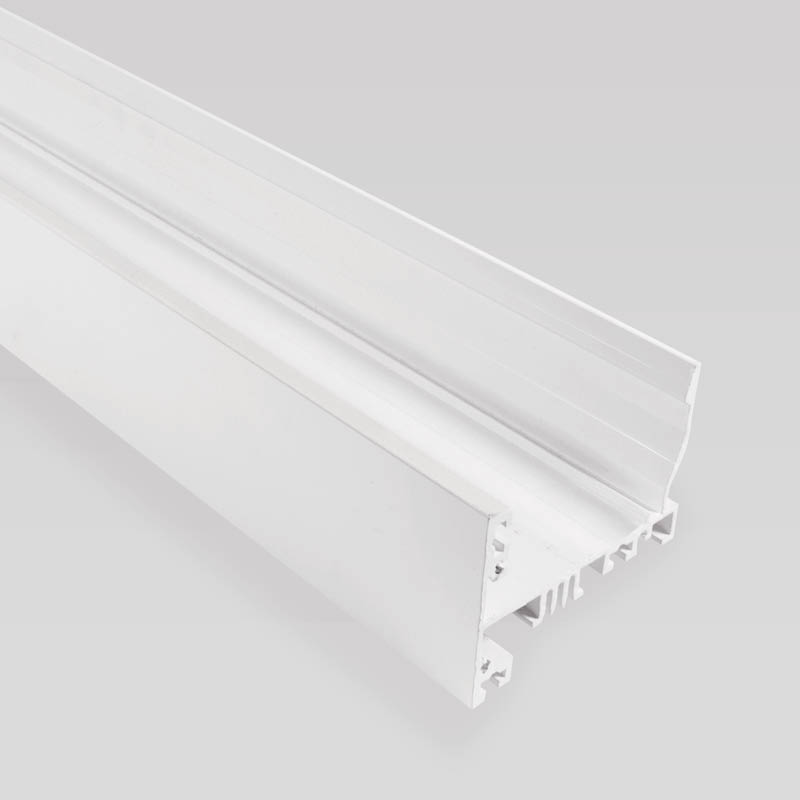

Evoq ramps serve as prebuilt cove structures that can be easily integrated into ceilings or walls. All ramp options are field-cuttable to fit all shapes and patterns, curved, or linear.

15+ Mounting Options

Evoq ramps come in mud-in, direct-mount and field-curvable options for easy, cost-effective installation. Fixtures can be integrated into existing coves as standalone units, or as part of geometric shapes and patterns, with integrated corners.

Mud-in Ramps

8 RAMP OPTIONS

Field-Curvable Ramps

6 RAMP OPTIONS (MUD-IN)

Direct Mount Ramps

3 RAMP OPTIONS

Additional Options

(COVE BY OTHERS)

Linear Mud-In Ramp Profiles

FE1 - Flat Edge Ramp

FE2 - Flat Edge + Air Return Ramp

KE1 - Knife Edge 35° Ramp

WCA - Wall Cove with Adjustable Brackets

Curved Mud-In Ramp Profiles

CKE1 - Curved Ramp With Knife Edge for Straight Structures

CKE2 - Curved Ramp With Knife Edge for Curved Structures

CRV1 - Curved Ramp Flat Edge: Straight Structures

CRV2 - Curved Ramp Flat Edge: Curved Structures

Direct Mount Ramp Profiles

DM1 - Flat Edge

DM2 - Flat Edge with Gasketed Clear Cover

DM3 - Flat Edge with Adjustable Brackets

How to choose the right cove luminaire

Lumenwerx offers different cove systems for different applications. Check out our Cove Comparison Guide to compare features and find the right luminaire solution for your cove configuration. You can also browse our full selection of cove products. For any questions, consult your Lumenwerx representative.

Explore Cove Products

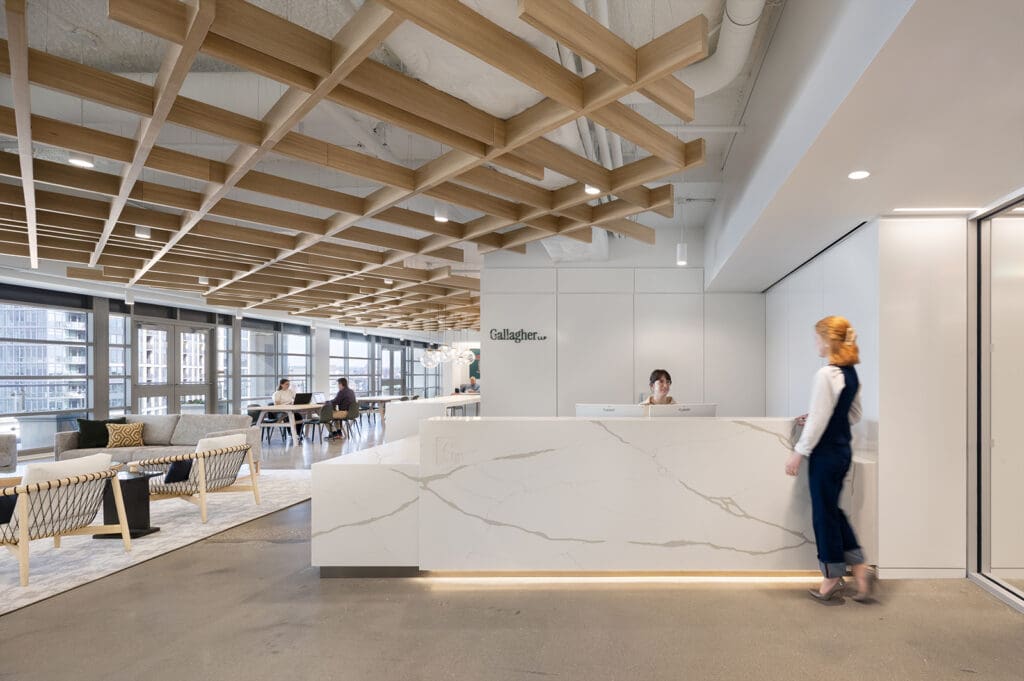

Selected Projects
