VIA LUX
Pendant, Recessed, Surface, Wall
PRECISION. COMFORT. BEAUTY.

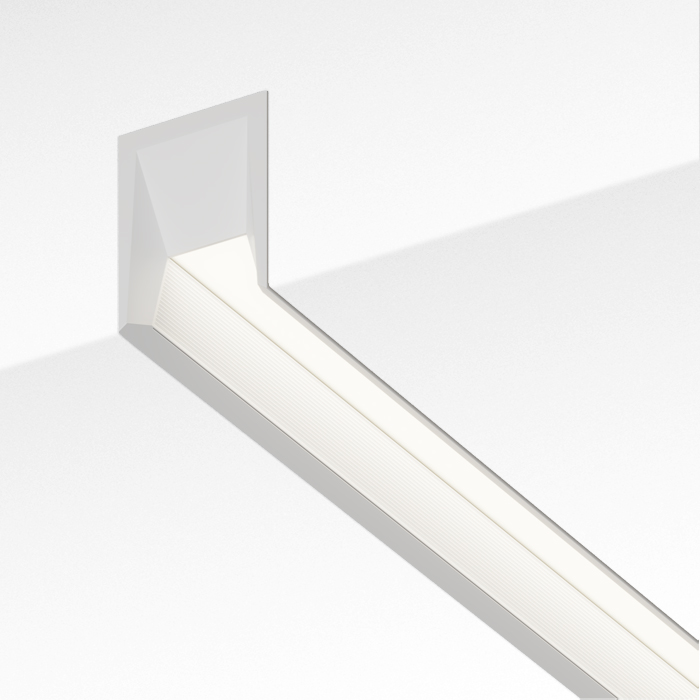

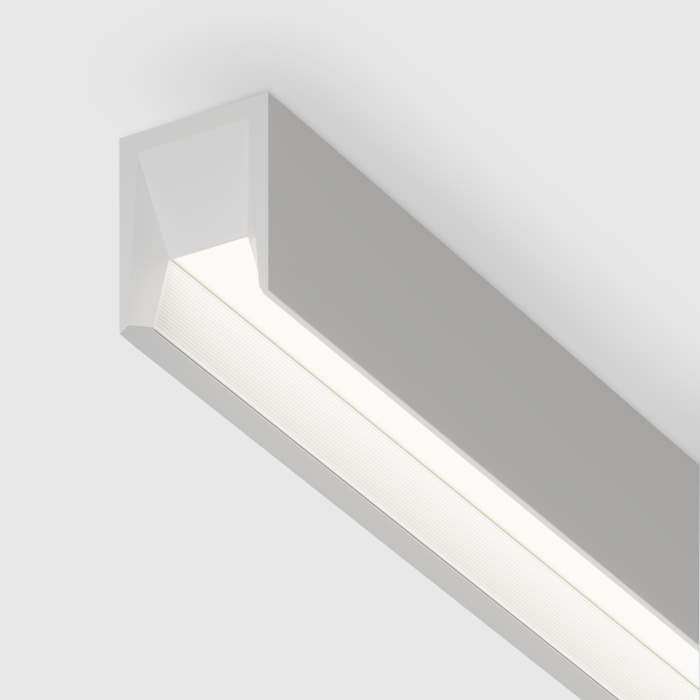

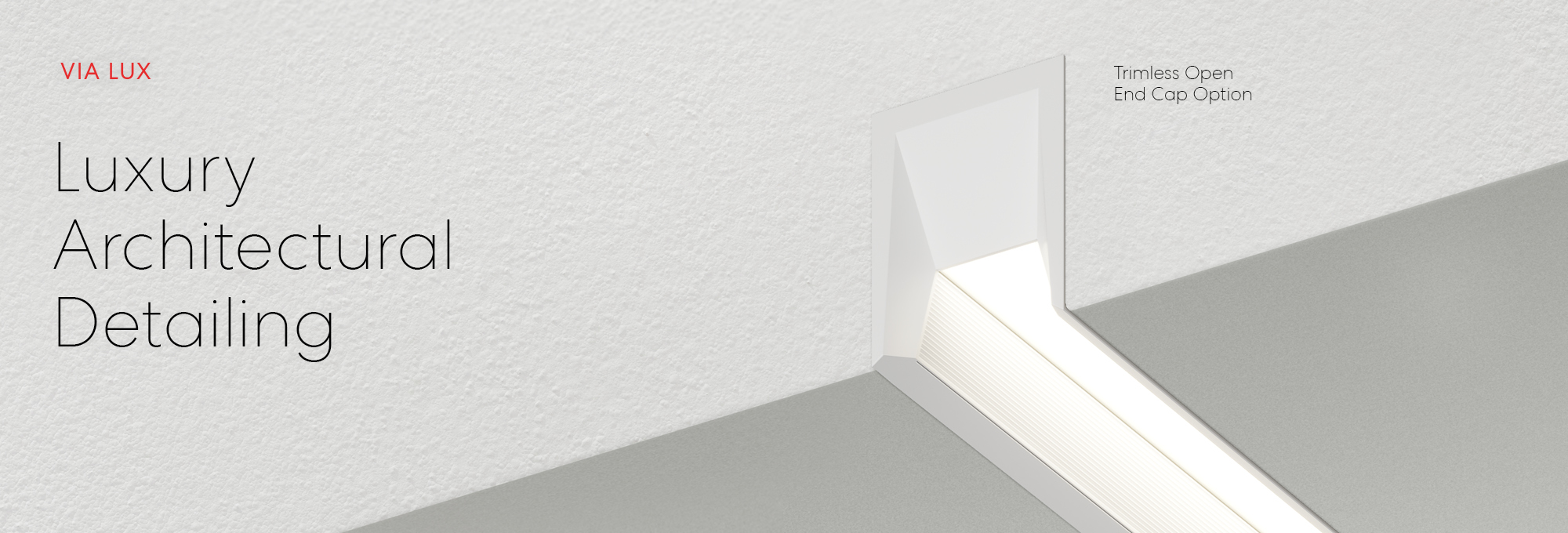

Via Lux combines refined aesthetics with engineering ingenuity, delivering premium linear lighting with high performance and low-glare comfort. At just 3" wide, Via Lux’s compact form with integral driver simplifies installation across pendant, surface, wall, and recessed applications. Offered in direct or direct/indirect distributions with open or closed end cap designs, Via Lux is endlessly adaptable.
SPECIFICATIONS
SIZE: 3IN
LIGHT SOURCE: LED
CHROMATICITY: STATIC WHITE
LIGHT DISTRIBUTION: DIRECT, DIRECT/INDIRECT
MOUNTING: PENDANT, RECESSED, SURFACE, WALL
OPTICS: HLO, TIO, WAI2, WIO2
OPTICS
DIRECT
The High-Efficiency Lambertian Optic (HLO) shielding of diffusing 0.075" thick acrylic with up to 88% transmission and good source obscuration is combined with matte white side reflectors to create an efficient optical chamber with uniform luminosity. Luminaire brightness is controlled by the flux-to-shielding area ratio. For visual comfort, avoid high lumen output unless Ubik is installed in a high ceiling application.
INDIRECT
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array that has a translucent lens to mask pixilation from the diodes. TIO has a 100° spread in the indirect that is ideal when the fixture is mounted farther away from the ceiling.
Widespread Asymmetirc Indirect Optics (WAI2) - offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling in the up-light while distributing the required illumination of the rest of an interior space. For avoiding glare and enjoying visual comfort, WAI2 is an ideal solution.
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
PoE
PoE technology can be integrated into many of Lumenwerx’s lighting solutions and product families. For nodes, we always aim for complete integration, but when space is limited, we look for a remote solution that doesn’t compromise the design aesthetic. PoE can be integrated into 95% of our product offering, including our Chromawerx solutions.
