MEDICO

Direct

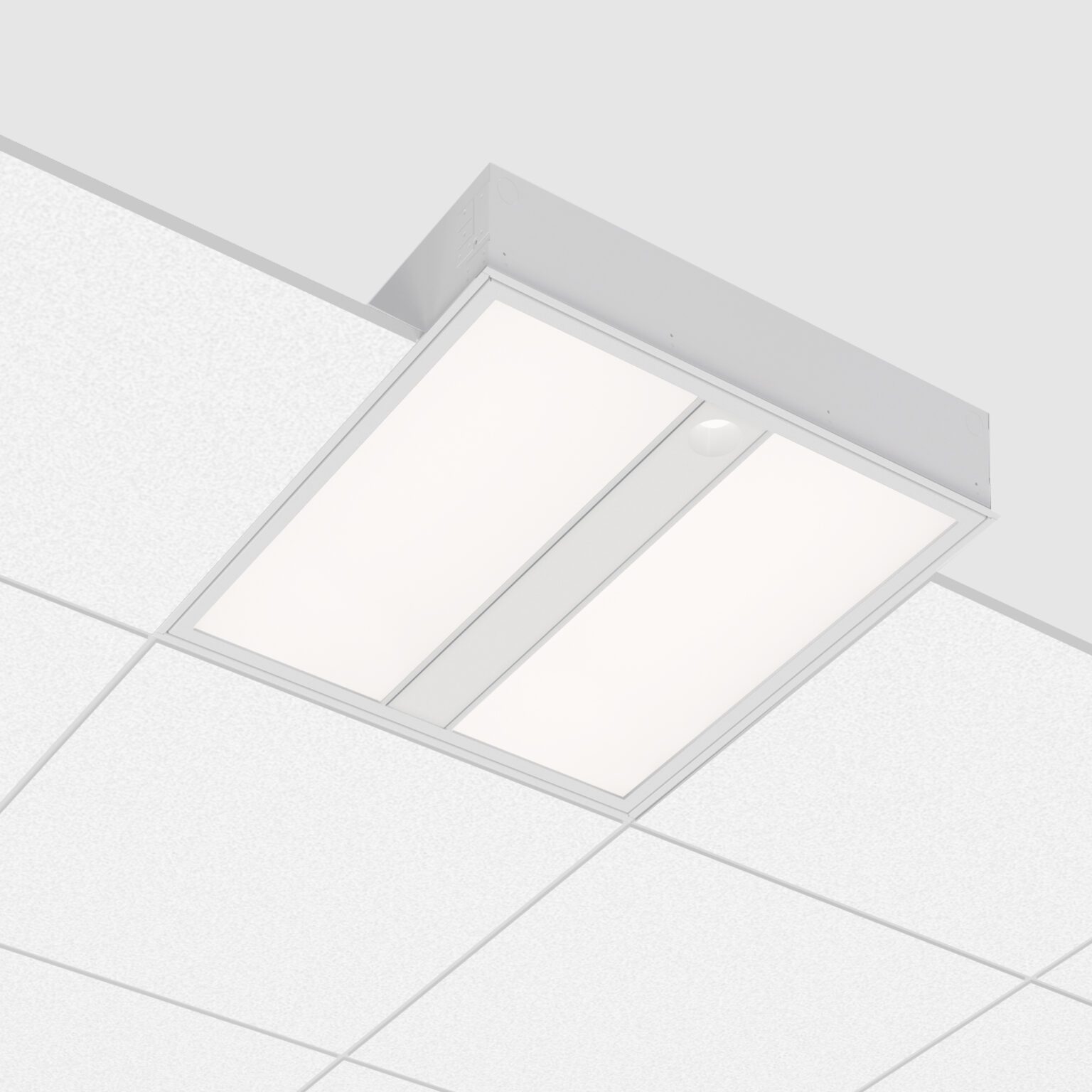

Repetition, pattern, and rhythm in design can enhance esthetic appeal. Medico was designed to be used solely or complementarily with Medico Plus to continue the same look throughout an entire health facility. Medico offers the same low-glare illumination in Ambient mode as Medico Plus. The center channel is offered with parabolic louvers, micro spots, or a downlight option.

  • 13,800 maximum lumen output
  • Up to 143 lm/W
  • L90 at > 60,000 hrs
  • Optional door with polycarbonate lens and tamper-resistant screws meeting IK10 criteria

SPECIFICATIONS

SIZE: 2'X2', 2'X4'

LIGHT SOURCE: LED

LIGHT DISTRIBUTION: DIRECT

CHROMATICITY: STATIC WHITE, FULL SPECTRUM, SOLA CHROMAWERX, DUO CHROMAWERX

APPLICATIONS: HEALTHCARE

COLOR TEMPERATURE: 2700k, 3000k, 3500k, 4000k, 6500k

MOUNTING: RECESSED

OPTICS: NPO, ULO



OPTICS

Uniform Efficiency Lambertian Optic (ULO) - Thermoformed from impact-modified white acrylic, the ULO provides an even light distribution with up to 88% transmission. Its unique enclosed design creates smooth illumination.

Nano-Prismatic Optic (NPO) Nano-Prismatic Optic (NPO) is composed of multiple nanoprismatic refractors that bend light with great precision. The NPO’s nanostructure eliminates pixelation from the LED diodes for a harmonious lens appearance. Light distribution is glare-free, concentrated, and 20% sharper than that diffused from a frosted acrylic lens.

CHROMAWERX

ChromaWerx Sola is single-channel control that dims output while warming the color temperature in a pre-determined relationship. A simple digital or analog control sends a common signal to dual output digital drivers, which are programmed to adjust a specially populated LED array to emulate the effect of dimming a filament source. Dimming range is programmable but the default option runs from 3500K at 100% of full power to 2200K at 5% of full power. CRI is maintained above 80 throughout the dimming range.

ChromaWerx Duo is two-channel control. It uses analog or digital protocols for synchronous control of both warm and cool LED arrays, enabling the user to set color temperature and light output. Commonly called “tunable white”, ChromaWerx two-channel control provides the range of warm (2700K) to cool (6500K) color that can be useful for helping to entrain circadian rhythms, stimulate alertness for improved educational and work productivity, and compensate for jet lag, among other applications. The ChromaWerx drivers are programmed to limit maximum light output and power usage across all color temperatures. CRI is maintained above 80.

PoE

PoE technology can be integrated into many of Lumenwerx’s lighting solutions and product families. For nodes, we always aim for complete integration, but when space is limited, we look for a remote solution that doesn’t compromise the design aesthetic. PoE can be integrated into 95% of our product offering, including our Chromawerx solutions. See PoE webpage

Versatility
Flexibility
