Product Page
VIA SLIM 3
Pendant, Wall, Patterns

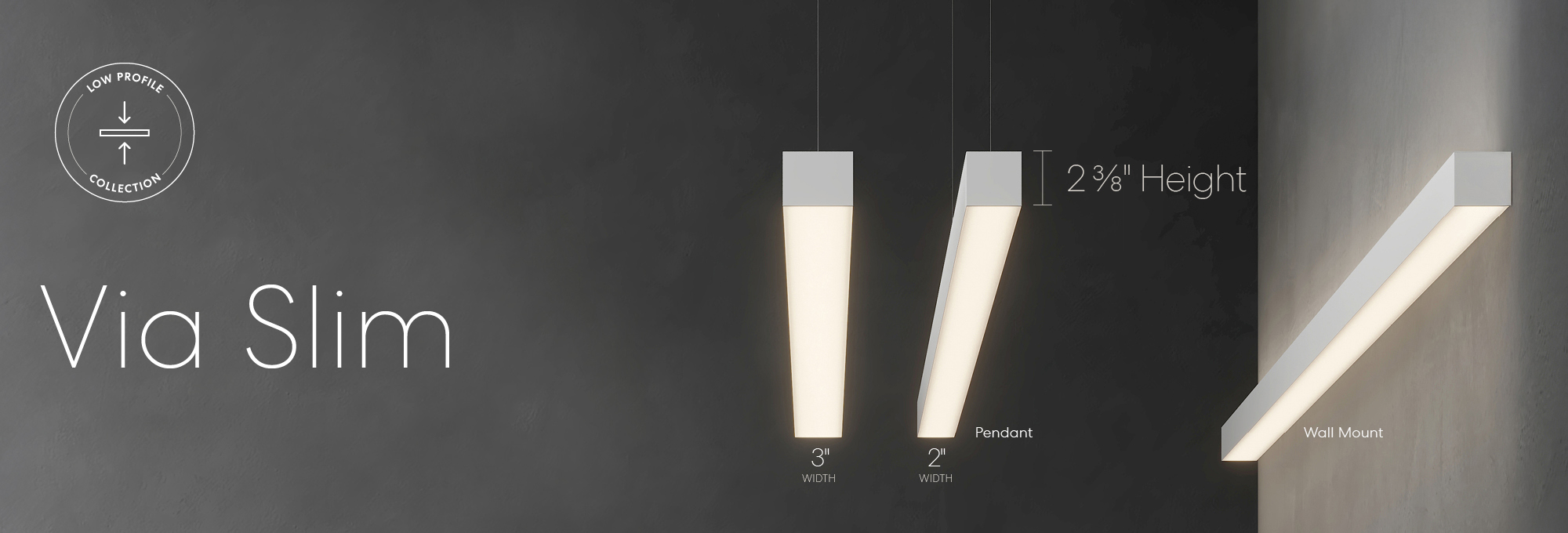

One of the most compact and versatile systems in its class, Via Slim combines minimal design with full-scale performance, featuring one of the slimmest linear profiles—just 2 3/8" tall and available in 2" and 3" widths with integral drivers. Pendant or wall-mounted, with direct-only or direct/indirect distribution, Via Slim expands design possibilities through standalone fixtures, linear runs, and pattern configurations.
SPECIFICATIONS
SIZE: 3IN
LIGHT SOURCE: LED
CHROMATICITY: STATIC WHITE, FULL SPECTRUM
LIGHT DISTRIBUTION: DIRECT, DIRECT/INDIRECT

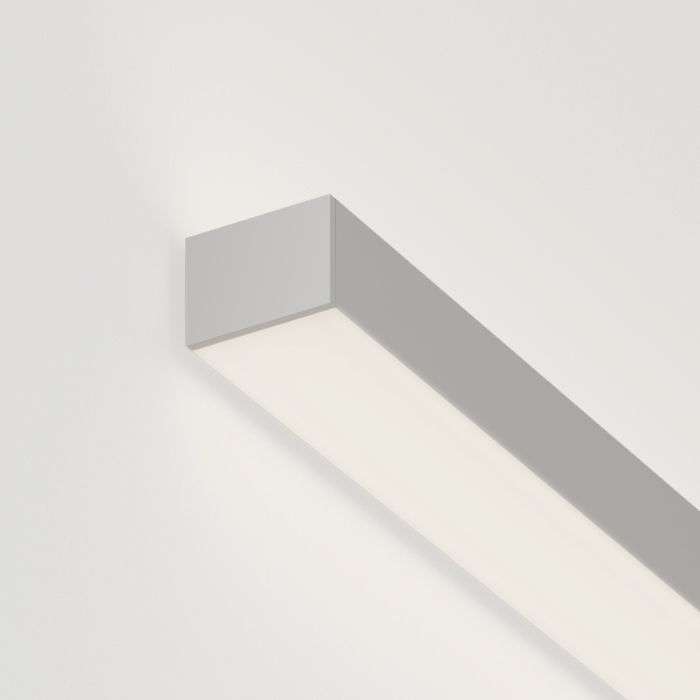

MOUNTING: PENDANT, WALL
OPTICS: SDBO, SLO, SMPO, TIO, WAI2, WIO2
OPTICS
DIRECT
Shallow Direct Batwing Optic (SDBO) - Delivers broad, uniform illumination with smooth beam edges and high efficiency. It combines powerful coverage with low-glare comfort.
Shallow Lambertian Optic (SLO) - A low-profile optic with diffusing acrylic that provides wide light distribution, with matte white reflectors enhancing LED output spread.
Shallow Micro-Prismatic Optic (SMPO) - A low-profile optic featuring a micro-prismatic lens that balances refraction and reflection, reducing glare while maintaining efficiency and uniform light distribution.
INDIRECT
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array that has a translucent lens to mask pixilation from the diodes. TIO has a 100° spread in the indirect that is ideal when the fixture is mounted farther away from the ceiling.
Widespread Asymmetirc Indirect Optics (WAI2) - offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling in the up-light while distributing the required illumination of the rest of an interior space. For avoiding glare and enjoying visual comfort, WAI2 is an ideal solution.
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro prismatic optic that offers an impressive 160° spread. WIO2 creates an even illumination for smooth brightness on the ceiling that can achieve uniformity ratios of up to 2:1.
PoE
PoE technology can be integrated into many of Lumenwerx’s lighting solutions and product families. For nodes, we always aim for complete integration, but when space is limited, we look for a remote solution that doesn’t compromise the design aesthetic. PoE can be integrated into 95% of our product offering, including our Chromawerx solutions.
